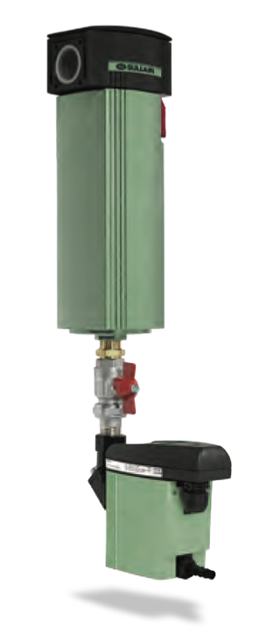

Sullair Coalescing Filter SXTF0500F

Warning: Improper cleaning and use of incorrect cleaning agents could result in slight injuries and health or property damage.

Never clean the device with a wet cloth.

Do not use abrasive or aggressive cleaning agents or solvents that could damage the external coating (e.g. labels, type plate, corrosion protection, etc.).

Do not clean or operate the device with hard or pointed implements.

Use dusters or damp cotton cloths for exterior cleaning that cannot become statically charged.

Replace illegible product labels (pictograms, designations) promptly.

To clean the filter, use a damp (but not wet) cotton cloth or disposable tissue and a mild conventional detergent or soap.

Spray the cleaning agent on a new cotton or disposable cloth

Warning: This test requires trained personnel with PPE!

Sullair Corporation does not provide any recommendations.

The operator of the compressed system is responsible for selecting the testing process.

Testing should be completed in accordance with applicable standards and directives (e.g. DIN EN 1779).

Select the type of leak test performed

Upload a photo of the system after the test

Sign off on the system leak test

Close the shut-off valves upstream and downstream of the filter or relevant system section

Turn the knurled-head screw on the float drain counter-clockwise (left) from >>automatic drainage<< to >>mechanically open<<

Loosen locking screw on the safety runner

Remove housing body by pulling downwards

1. Close the shut-off valves upstream and downstream of the filter or relevant system section and depressurize filter.

2. If using the SULLIMAX™, it must be separated from the bottom section of the filter.

For further information, see the attached installation and operating instructions for the SULLIMAX™.

3. Loosen locking screw on the safety runner
