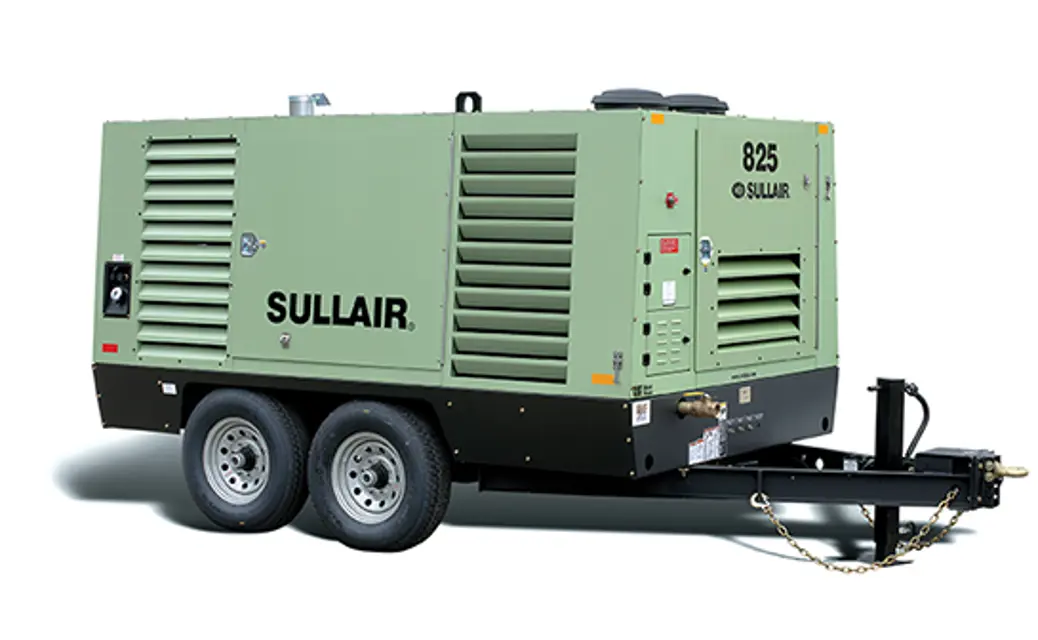

Sullair Portable Air Compressor 825

If not using Sullair AWF, replace the fluid filter element only.

Compressor shut off and system pressure relieved?

Position a suitable container beneath the elements to catch fluid drainage.

Elements removed using a suitable tool?

Each element rotated counterclockwise to remove?

Wheel bearing lubrication is essential to the proper functioning and reliability of your portable compressor axle.

Use wheel bearing grease that conforms to military specification MIL-G-10924 or a high temperature wheel bearing grease such as lithium complex NLGI Consistency #2.

If your axle is equipped with the E-Z Lube feature, the bearings can be periodically lubricated without removing the hubs from the axle.

Did you remove the rubber plug from the end of the grease cap?

Did you place the grease gun filled with a quality wheel bearing grease onto the grease zerk located in the end of the spindle?

Did you pump grease into the zerk?

Did you observe new, clean grease flowing back out of the cap around the grease gun nozzle?

Did you remove the grease gun, wipe off any excess, and replace the rubber plug in the cap?

Sign off on the wheel bearing lubrication

Clean the return line orifice and strainer

Repack the wheel bearings on wheel-mounted units

Sign off on the 1000 hourly compressor maintenance

6.3 Noise emissions maintenance and maintenance record log

The following instructions and maintenance record log book, for the proper maintenance, use and repair of this com-pressor, is intended to prevent noise emission degradation.

Table 6-1: Annual muffler and exhaust system inspection

At least annually inspect muffler(s) and engine exhaust system to make sure all parts are securely mounted, that all joints an onnections are tight, and that the muffler is in good condition. Do not operate compressor with defective exhaust system. Remove and replace any defective parts by ordering with part numbers indicated in the Parts List.

Table 6-2: Annual air filter(s) and air inlet system inspection

In addition to the instructions in the Maintenance section of the Operator's Manual, the air filters) and entire air inlet system should be inspected at least annually, to make sure all parts are securely mounted, that all joints and connections are tight, that there are no other leaks in the system, and that the filter element(s) are intact. Do not operate compressor with defective air inlet system. Remove and replace defective parts by ordering with part numbers indicated in the Parts List.

Table 6-3: Annual engine vibration mount inspection

At least annually inspect engine vibration mounts for security of attachment and to make sure the resilient parts are intact. Do not operate compressor with defective engine mounting system. Remove and replace defective parts by ordering with part numbers indicated in Parts List.

Table 6-4: Annual frame, canopy and parts inspection

Compressor fluid change procedure

Did you warm-up the compressor for 5 to 10 minutes?

Did you shut the compressor off and relieve all internal pressure?

Did you drain the fluid by opening the appropriate drain valve located in the front of the machine?

Did you close the valve when draining was complete?

Did you change the compressor fluid and replace the fluid filter element?
