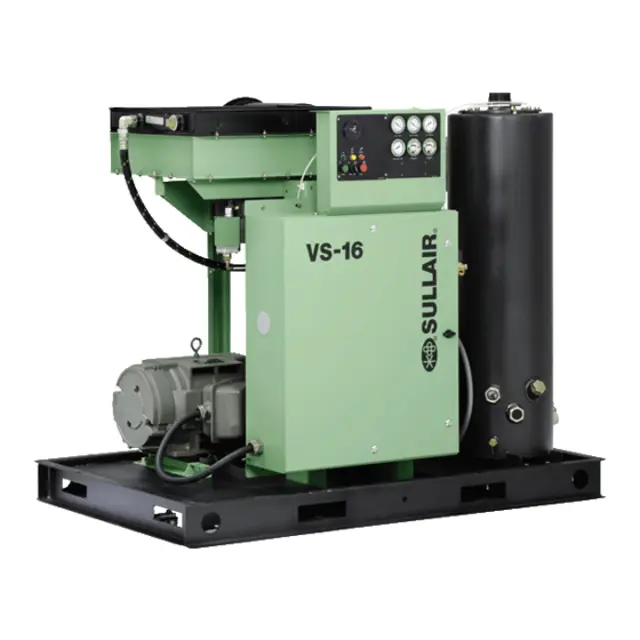

Sullair Rotary Vacuum System VS16 40HP: Open

Lubricate the Sullicon Control linkage

Replace the fluid filter element

Drain the sump and change the vacuum pump fluid

Clean the fluid pump suction strainer

Sign off on the 4000 hourly vacuum system maintenance

Filter maintenance gauges indicate need for maintenance

Inlet Filter Element Replacement

Exterior of air filter housing cleaned

Element removed and base and interior of cover cleaned

6.7 PARTS REPLACEMENT AND ADJUSTMENT PROCEDURES

Old element and gasket removed using a strap wrench

Light film of fluid applied to the new gasket

New element hand tightened until the new gasket is seated in the gasket groove

Element tightened by hand an additional 1/2 to 3/4 turn

Machine restarted and checked for leaks

Sign off on the filter element replacement

Warning: This procedure requires trained personnel with PPE!

Relieve all pressure from the sump tank

Disconnect all piping connected to the sump cover to allow removal of return lines, discharge lines, etc.

Loosen and remove the twelve (12) hex head capscrews from the cover plate

Lift the cover plate from the sump

Inspect the receiver/sump tank for rust, dirt, etc.

Scrape the old gasket material from the cover and the flange on the sump. Be careful not to let the scraps fall in the sump.

Reinsert the separator element(s) into the sum taking care not to dent it against the tank opening.

Filter maintenance gauge indicates replacement

Enter the machine's hour meter reading

Enter the date of the last fluid filter replacement

Upload a photo of the new fluid filter

Sign off on the fluid filter maintenance
