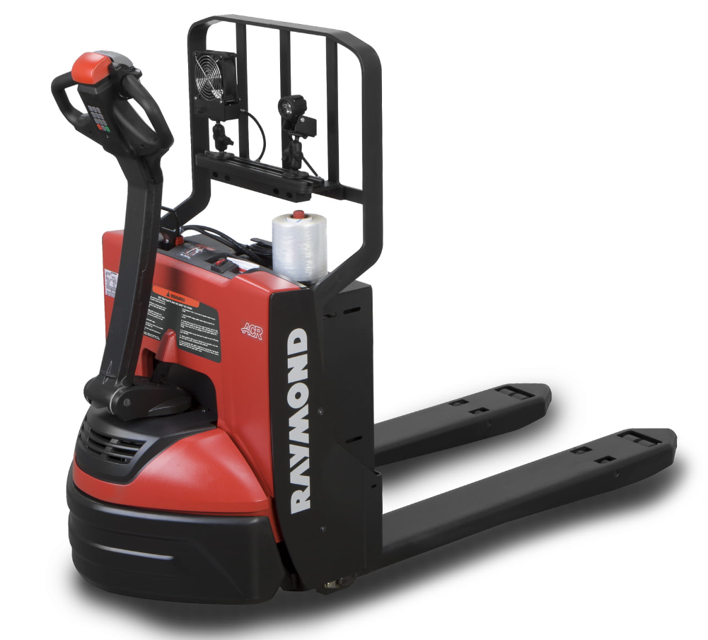

Raymond Walkie Pallet Jack 8210
Need answers fast?
Explore the manual using AI.
The Raymond Walkie Pallet Jack 8210 is a reliable and efficient material handling solution designed for warehouse and industrial applications. Known for its robust construction and ease of use, this electric pallet jack enhances productivity while ensuring safety and performance in various operational environments.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Raymond Walkie Pallet Jack 8210
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Raymond Walkie Pallet Jack 8210
Create an account to install this asset package.
Maintenance Plans for Raymond Walkie Pallet Jack Model 8210
Integrate maintenance plans directly into your work orders in MaintainX.
Drive and Brake Maintenance
Drive Unit Removal
Lower the forks and disconnect the battery connector
Remove the lower and grille covers
Remove the bumper
Jack the truck and block the frame
Remove the drive wheel
Remove the screws that secure the control arm stop
Disconnect the handle harness and arm angle proximity switch
Disconnect the cables/wire from the traction motor to the terminal block on the drive unit housing
Switches Maintenance
Examine the switch for signs of arcing, overheating, discoloration, cracking, or other physical damage
Measure the resistance across the switch in the closed position
Measure the resistance across the switch in the open position
Main ON/OFF switch inspection: Battery voltage B+ present on the two terminals of the switch
Main ON/OFF switch inspection: Ohmmeter reading in the OFF position
Main ON/OFF switch inspection: Ohmmeter reading in the ON position
Main ON/OFF switch removal: Successfully removed the Main ON/OFF switch
Main ON/OFF switch installation: Successfully installed the new Main ON/OFF switch
2-Position Keyed Switch (Optional): Successfully replaced the key switch
Finish and Accessories Maintenance
NOTE: For replacement parts information refer to the Parts Manual.
Tractor Cover Removal
Lower Cover removed
Grille Cover removed
Upper Cover removed
Console Cover removed
Tractor Cover Installation
Console Cover installed
Upper Cover installed
360 Daily or 2000 Hourly Universal Stance Reach Forklift Maintenance
Drive Unit
Change fluid and clean magnet on drain plug
Gear Oil Level Check
Remove the fill/level plug
Check the oil level
Add the specified oil if necessary
Install the fill/level plug securely
Hydraulic Reservoir
Change hydraulic fluid
60 Daily or 250 Hourly Universal Stance Reach Forklift Maintenance
Warning: This maintenance check requires trained personnel with PPE!
Forklift operational?
If forklift is not operational, report the issues to the maintenance team and stop the procedure
Choose the type of operation
Forklift's hour meter reading
Forklift passed the post-maintenance test?
Issues found during the test
Sign off on the forklift maintenance
Parts for Raymond Walkie Pallet Jack 8210
Access the parts list for your equipment in MaintainX.
Hydraulic Reservoir (non-coldstorage trucks) (+35 to +120°F) (+1.6 to +48.8°C) ISO 46
990-616/04
Drive Unit Gear Case (all applications) 75W - 90 Synthetic Gear Oil API Service Classification GL-5
990-655/003
Thread-locking 1 1/2 in. and below, 50 ml
1013829/03
Thread-locking 1/4 in. and below, 10 ml
990-403/01
Drive Unit Gear Case (all applications) 75W - 90 Synthetic Gear Oil API Service Classification GL-5
990-655/001
Hydraulic Reservoir (non-coldstorage trucks) (+35 to +120°F) (+1.6 to +48.8°C) ISO 46
990-616/04
Drive Unit Gear Case (all applications) 75W - 90 Synthetic Gear Oil API Service Classification GL-5
990-655/003
Thread-locking 1 1/2 in. and below, 50 ml
1013829/03
Thread-locking 1/4 in. and below, 10 ml
990-403/01
Drive Unit Gear Case (all applications) 75W - 90 Synthetic Gear Oil API Service Classification GL-5
990-655/001
Hydraulic Reservoir (non-coldstorage trucks) (+35 to +120°F) (+1.6 to +48.8°C) ISO 46
990-616/04
Drive Unit Gear Case (all applications) 75W - 90 Synthetic Gear Oil API Service Classification GL-5
990-655/003
Thread-locking 1 1/2 in. and below, 50 ml
1013829/03
Thread-locking 1/4 in. and below, 10 ml
990-403/01
Drive Unit Gear Case (all applications) 75W - 90 Synthetic Gear Oil API Service Classification GL-5
990-655/001
