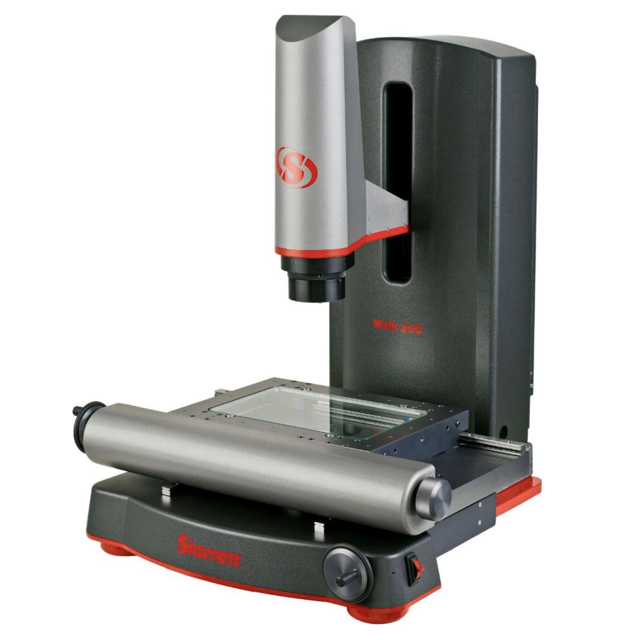

Starrett Manual Digital Video System MVR200

Need answers fast?
Explore the manual using AI.

Starrett Manual Digital Video System MVR200
Starrett Manual Digital Video System MVR200

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Starrett Manual Digital Video System MVR200

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Starrett Manual Digital Video System MVR200

Starrett Manual Digital Video System MVR200

Create an account to install this asset package.

Maintenance Plans for Starrett Manual Digital Video System Model MVR200

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Manual Digital Video System Inspection

Check mark

Work area is clean, dry, and free of debris

Check mark

Debris or loose items removed from around the system and metrology stage

Check mark

Electrical power cord is plugged into a grounded power source and is unobstructed

Check mark

Temperature reading

Check mark

Humidity reading

Check mark

System warmed up to normal operating temperature before performing critical parts measurements

Check mark

Sign off on the daily inspection

Run this procedureArrow right

Verifying Zoom Optics Parcentricity

Check mark

Parcentricity describes the condition wherein a feature will remain at the optical center of the video image throughout the magnification range. Like parfocality, parcentricity requires that the feature be first located at highest magnification.

Check mark

Is the mag checker or other suitable inspection part placed and secured on the stage?

Check mark

Is the crosshair image tool selected and verified at its defined center position?

Check mark

Is the crosshair centered on the X-Y axis of the calibration standard (or another suitable feature if the standard is not used) at low magnification?

Check mark

Is the image refocused at high magnification?

Check mark

Is the stage position adjusted as needed to recenter the crosshair on the feature?

Check mark

Does the feature remain at the center of the crosshair as the magnification is lowered?

Check mark

Report any observed discrepancy

Check mark

If the error is verified, contact your Starrett representative for authorized service.

Run this procedureArrow right

Manual Digital Video System Cleaning

Check mark

• The MVR system should be kept in a clean environment, away from dirt, dust, oil, and debris which could affect system performance or degrade the system’s mechanical and electronic parts. If a clean environment is not available, the machine should be kept as clean and protected as is possible. In harsh environments, preventive maintenance and factory service should be scheduled more frequently to keep the system in top working order.

Check mark

WARNING! Never pour fluid on the system when cleaning. Do not over-wet cleaning cloth. Excessive moisture can seep into mechanical or electrical parts, damage the equipment and possibly cause an electrical short circuit and physical injury. As a precaution, unplug the system before cleaning. Always unplug the system before using any flammable cleaning fluid.

Check mark

1. Cleaning External Surfaces

Check mark

Wipe down the system with a clean, lint-free cloth moistened (not wet) with plain water or Simple Green® regularly to remove any external dust or dirt. Never wipe down with acetone or other harsh solvents, which can damage painted or plastic surfaces. Isopropyl alcohol can be used to clean surface contaminants where Simple Green proves ineffective.

Check mark

• Most critical components are covered and require no user service. If the stage mechanics require service, contact your Starrett representative.

Check mark

2. Cleaning Optics

Check mark

CAUTION! Do not touch lens surfaces with your fingertips. Fingerprints can destroy optical coatings over time. Only clean optical surfaces with proper cleaning supplies, and then only when necessary.

Check mark

To clean the lens, refer to the following guidelines:

Check mark

• If a lens is covered with loose dust, do the following:

Run this procedureArrow right

1 Weekly Manual Digital Video System Maintenance

Check mark

Inspect the system for cleanliness.

Check mark

Verify that the stage control mechanisms move freely. If it binds, call for service. The lead screws use a self-lubricating TFE coating, which is designed to last for the life of the product. Do not apply any grease or other lubricant.

Check mark

Check the system for calibration against a certified chrome-on-glass standard.

Check mark

Sign off on the weekly manual digital video system maintenance

Run this procedureArrow right

Manual Digital Video System Verifying Calibration

Check mark

Calibration should be verified periodically depending on user requirements and system usage and should be performed at least monthly.

Check mark

A calibration verification standard artifact is available from Starrett authorized distributors or directly from the Starrett service department.

Check mark

Calibration should also be verified after the system has been serviced or moved.

Check mark

The following is a brief description of the steps recommended for the verification of your machine.

Check mark

Place the calibrated verification standard in one the six positions on the glass stage as illustrated in the previous figure.

Check mark

Secure the standard with hot melt glue or other suitable retaining method so that stage translation cannot move the standard under any condition.

Check mark

Skew the center of the two end circles. Refer to the MetLogix M3 User Guide for proper alignment procedures.

Check mark

Measure the distance between the 1st and 2nd fiducials.

Check mark

Measure the distance between the 1st and 3rd fiducials.

Run this procedureArrow right

Parts for Starrett Manual Digital Video System MVR200

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

MVR300 Stage Glass

5359-1

Combination Field of View and Magnification Checker Calibration Standard

9123

150mm Line Standard

1434-1

200mm Line Standard

8736-1

MVR300 Stage Glass

5359-1

Combination Field of View and Magnification Checker Calibration Standard

9123

150mm Line Standard

1434-1

200mm Line Standard

8736-1

MVR300 Stage Glass

5359-1

Combination Field of View and Magnification Checker Calibration Standard

9123

150mm Line Standard

1434-1

200mm Line Standard

8736-1
