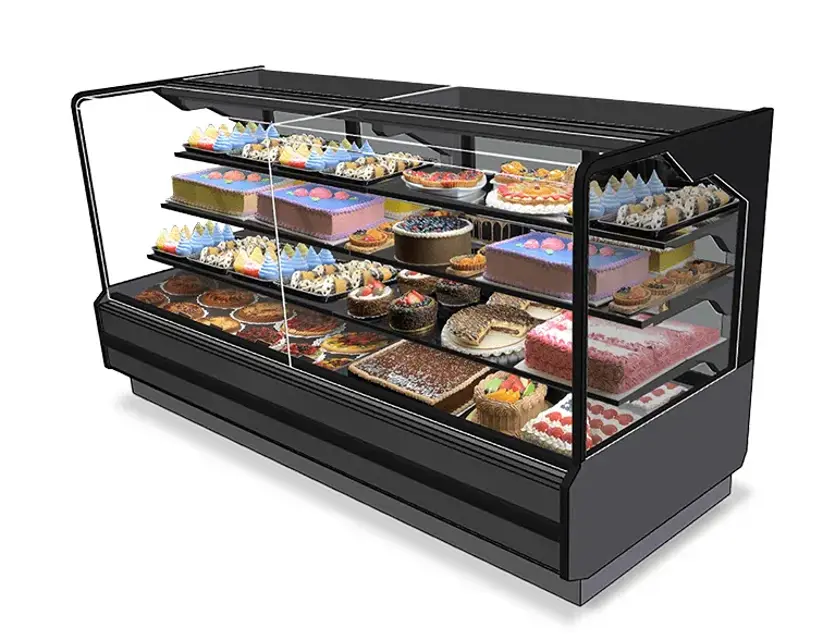

Hussmann Bakery Service Merchaniser DZC‐V‐075‐DWR‐R

Remove the Top Glass and set aside.

Remove the Lift Hardware Gasket on the arm of the gas spring that will be replaced.

Raise the Front Glass to its maximum opening and support.

The Front Glass must be supported in this position during the entire replacement procedure. Ensure that the support is rigid and is not disturbed during the replacement.

Remove the (2) T25 Torx Block Screws towards the rear of the lift arm assembly.

Loosen the Anchor Block Set Screw. It is not necessary or recommended to remove this screw. Loosen about 4-5 full revolutions in order to disengage the Gas Spring Block.

Use a magnetic flat-head screwdriver to pull the Retainer Clips from the Pivot Pin, inside the Pivot Arm.

Slide the Pivot Pin from its bushings to release the Gas Spring to Pivot Arm Connection.

Rotate the Gas Spring down and away from the pivot arm, then Pull toward the front of the case. Note that the arm cover will have to be pushed down to create clearance.

• Crumbs and debris may fall through the airs-weep discharge slots on service cases. To access this location, remove the Upper Body Panel using the following procedure.

WARNING! DO NOT WORK ON ENERGIZED PARTS. DISCONNECT POWER TO THE CASE AND ALLOW THE AIRSWEEP HEATER TO COOL BEFORE PEFORMING THIS PROCEDURE

1. Use a flat-bladed screwdriver or blunt prying tool in the indicated slot locations to push the front body panel upward.

2. Raise the body panel to its highest position in the upper retainer. Note this step may required an assistant.

3. Rotate the lower edge of the body panel forward to clear the lower retainer.

4. Pull the panel downward and away from the case.

5. If necessary, remove the heater shield.

6. Clean area with a damp cloth.;

IMPORTANT: LIFT HARDWARE GAS SPRINGS ARE WEAR ITEMS AND WILL DEGRADE OVER TIME. LONGEVITY OF SERVICE DEPENDS ON MULTIPLE FACTORS, INCLUDING DAILY OPENINGS AND ENVIRONMENTAL CONDITIONS. GAS SPRINGS REQUIRE MONTHLY INSPECTION. IF INSPECTION DISCOVERS A DETERIORATED CONDITION, THE GAS SPRINGS MUST BE REPLACED.

Raise the front glass to its maximum opening

Using a flashlight, check into the gas spring channel

Check for signs of abnormal wear, such as fluid leakage from the gas spring body. If leakage is apparent, replace the gas springs.

Sign off on the gas springs inspection

• Long life and satisfactory performance of any equipment are dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, the merchandiser should be thoroughly cleaned, all debris removed, and interiors washed down weekly.

WARNING! TO PREVENT INJURY ALWAYS SHUT OFF POWER DURING CLEANING PROCESS.

• The exterior surfaces must be cleaned with a mild detergent without chloride and warm water to protect and maintain their attractive finish. NEVER USE ABRASIVE CLEANSERS OR SCOURING PADS.

• Clean bumpers with household spray cleaners. 4. Cleaning Under Merchandiser • Remove lower body panels. Use a vacuum with a long wand attachment to remove accumulated dust and debris from under the merchandiser.

5. Cleaning Stainless Steel Surfaces

• Use non-abrasive cleaning materials, and always polish with the grain of the steel. Use warm water or add a mild detergent to the water and apply with a cloth. Always wipe dry after wetting.

‐LIFT HARDWARE GAS SPRINGS ARE WEAR ITEMS AND WILL DEGRADE OVER TIME

‐ LONGEVITY OF SERVICE DEPENDS ON MULTIPLE FACTORS, INCLUDING DAILY OPENINGS AND ENVIRONMENTAL CONDITIONS

‐ GAS SPRINGS REQUIRE MONTHLY INSPECTION

‐ IF INSPECTION DISCOVERS A DETERIORATED CONDITION, THE GAS SPRINGS MUST BE REPLACED

1. Raise the front glass to its maximum opening.

• Check that the glass does not begin downward travel on its own. If it does, replace the gas spring

2. Close the front glass, then raise it to approximately 33% of its arc swing. Release it.

• Check that the glass does not slam down to its resting position. If it does, replace the gas spring.
