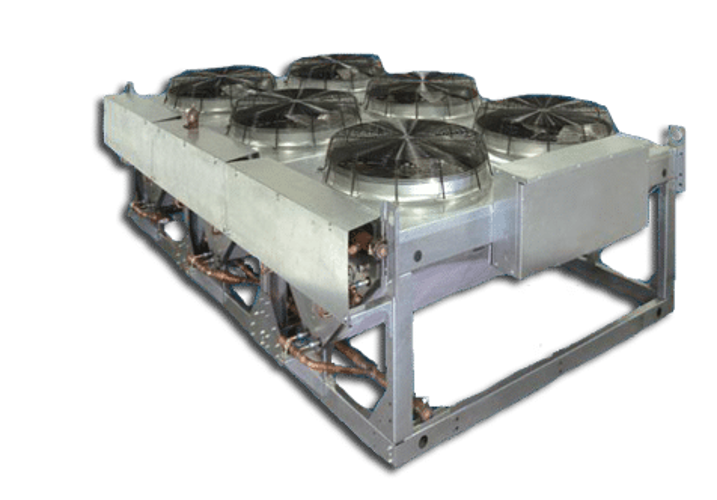

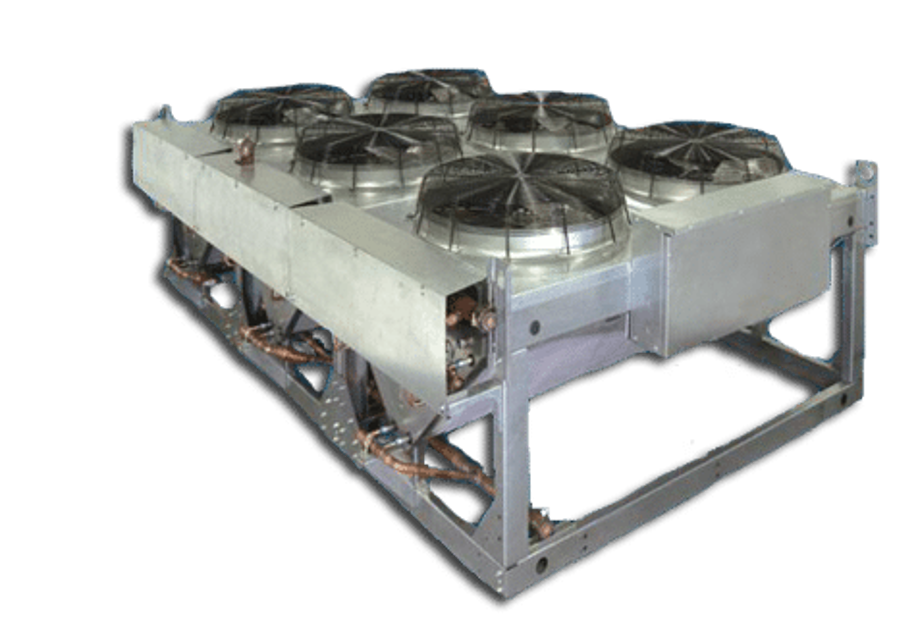

Hussmann Air-Cooled Condenser LAVA-12312P

Warning: Ensure the unit is turned off and disconnected from power before starting the cleaning process.

Check if the condenser is free of lint and dust.

Check if the cleaning solution is approved for finned tube coils.

Check if the water and cleaning solution is sprayed opposite the direction of the fan airflow.

Check if the cleaning spray wand is inserted into the fan cabinet above the coil section and below each motor & fan.

Sign off on the cleaning process.

Safety: If the Levitor Series II unit is equipped with an electrical power disconnect switch make sure the switch is in the “OFF” position, preferably locked in this position, before any electrical work is performed on the unit. Without a disconnect switch on the unit, make sure all power to the unit is off from the source.

Electrical power disconnect switch is in the “OFF” position?

All power to the unit is off from the source?

Electrical connections should be inspected periodically and tightened if required. Loose electric connections can cause severe electrical damage as well as nuisance tripout and burnouts.

Electrical connections inspected and tightened?

During the unit start up, phase check the fans for the correct rotation. While the fans are rotating, the airflow should pass through the coil surface first, flow through the fan and away from the unit. If the fans are pushing the air into the coil surface, the fans are rotating in the wrong direction and the motor wiring needs to be corrected.

Fans rotating in the correct direction?

Sign off on the Air-Cooled Condenser Maintenance
