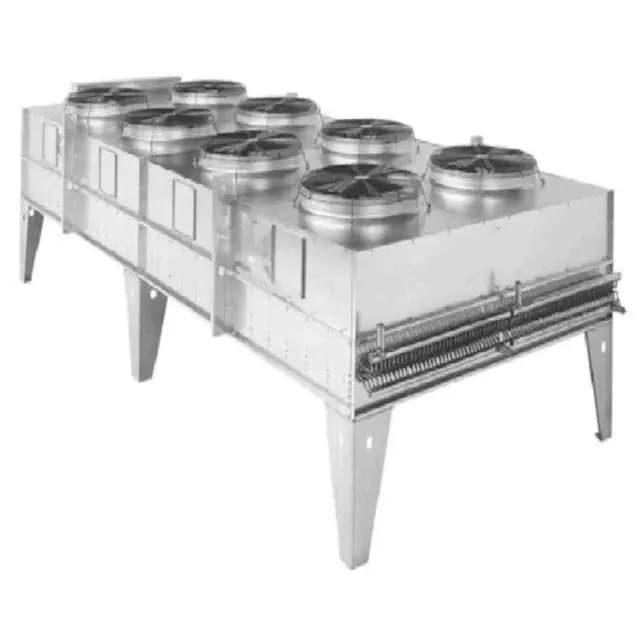

Hussmann Air-Cooled Condenser LAVA-15312M

Safety Warning: If the Levitor Series II unit is equipped with an electrical power disconnect switch make sure the switch is in the “OFF” position, preferably locked in this position, before any electrical work is performed on the unit. Without a disconnect switch on the unit, make sure all power to the unit is off from the source.

Electrical connections inspected and tightened if required?

Loose electric connections can cause severe electrical damage as well as nuisance tripout and burnouts.

During the unit start up, phase check the fans for the correct rotation?

While the fans are rotating, the airflow should pass through the coil surface first, flow through the fan and away from the unit. If the fans are pushing the air into the coil surface, the fans are rotating in the wrong direction and the motor wiring needs to be corrected.

Sign off on the Air-Cooled Condenser Maintenance

Warning: Ensure the unit is turned off before starting the cleaning process.

Check if the condenser is free of lint and dust.

Check if the cleaning is done in the opposite direction of the fan airflow.

Check if the cleaning spray wand is inserted into the fan cabinet above the coil section and below each motor & fan.

Sign off on the cleaning process.
