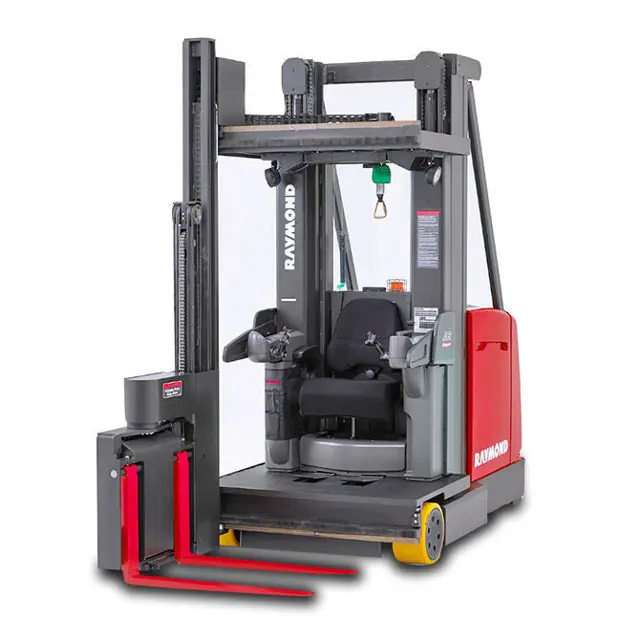

Raymond Lift Truck 9700

The following tools are required to perform fork inspection:

• Fork Wear Caliper (P/N 922-369)

Do the following when performing Scheduled Maintenance.

Straightness of Blade and Shank

NOTE: This measurement can be done with the forks on or removed from the carriage.

1. Measure the length of the blade and the height of the shank. height of the shank. See Figure 4-9.

Re-torque mounting bolts to 350 ft. lb. (475 Nm)

Torque power cable terminal nuts to 11 ft. lb. (15 Nm)

Load handler pump and motor separated?

Molybdenum Anti-Seize Compound (P/N 990-638) applied to the splines?

Sign off on the daily lift truck maintenance

Battery weight within allowable range

Battery connectors and leads undamaged

Battery gates in place and undamaged

Battery free play within 0.5 in. (13 mm)

Brakes stopping distance within 2 to 4 feet (0.6 to 1.2 m) when empty

Brakes stopping distance within approximately one and one-half truck lengths when loaded

Air gap between armature and armature plate: 0.040 in. (1.0 mm) max

Contactor tips not burnt or pitted

• All UL Type EE rated lift trucks

• Dusty or sandy conditions such as in cement plants, lumber or flour mills, coal dust or stone-crushing areas

• High temperature areas such as in steel mills, foundries, enclosed (Type EE) applications

• Corrosive atmosphere such as in chlorine or salt-sea air environments;
