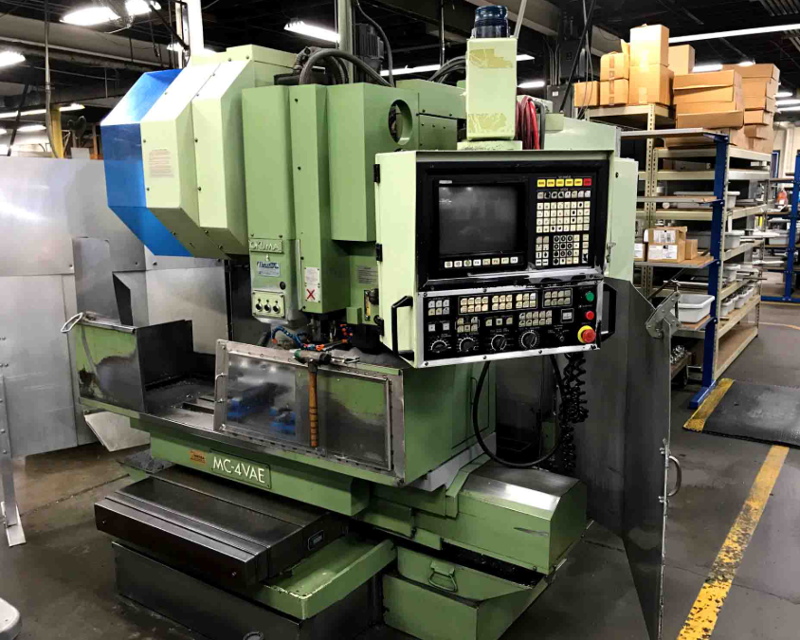

Okuma Vertical Machining Center MC-4VAE
Need answers fast?
Explore the manual using AI.
The Okuma Vertical Machining Center MC-4VAE is a high-performance CNC machine designed for precision machining tasks. Known for its reliability and advanced technology, this machining center is ideal for various industrial applications, ensuring optimal productivity and efficiency in manufacturing processes.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Okuma Vertical Machining Center MC-4VAE
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Okuma Vertical Machining Center MC-4VAE
Create an account to install this asset package.
Maintenance Plans for Okuma Vertical Machining Center Model MC-4VAE
Integrate maintenance plans directly into your work orders in MaintainX.
Hydraulic Pressure Adjustment
5-3-1. Hydraulic System Pressure Reading and Adjustment
Current hydraulic system pressure
Direction of pressure adjustment
5-3-2. Spindlehead Counterbalance Pressure Adjustment
Current spindlehead counterbalance pressure
Direction of counterbalance pressure adjustment
Ammeter reading same for spindlehead upward and downward motion
Sign off on the hydraulic pressure adjustment
Automatic Tool Changer Adjustment
(1) Adjustment of ATC Speed
As shown in the hydraulic circuit diagram and the diagram titled the arrangement of solenoid valves - ATC, the following hydraulic cylinders and valves are provided for ATC operation:
A. Magazine CLAMP cylinder
B. Magazine rotation motor
C. Magazine SLOW DOWN
D. Magazine pot rotation cylinder
E. Tool change arm UP/DOWN cylinder
F. Tool change arm 60° ROTATION cylinder
G. Tool change arm 180° ROTATION cylinder
Guideway Gib Adjustment
Warning: This procedure requires trained personnel with PPE!
Spindlehead Gib on Column Guideway
Upload a photo of the spindlehead before starting the procedure
Telescopic covers above and below the spindlehead removed?
Lube oil pipes and wipers removed?
Tapered gib strips, adjusting screws and their nuts exposed?
Adjustment Procedure
Lock nut loosened using the wrench supplied with the machine?
Adjusting screw turned
1 Weekly Vertical Machining Center Maintenance
Check oil level in the hydraulic power unit
Check oil level in the lube oil supply tank of the spindlehead lubrication system
Clean the air filter
1 Monthly Vertical Machining Center Maintenance
Lubricate ATC magazine chains and links using a hand oiler (except for 15-/20-tool ATC)
Check machine level
Change hydraulic oil and lube oil for the spindlehead lubrication system
Clean the coolant tank
Note: Steps 2 and 3 are to be performed at the first month after machine installation only
Sign off on the maintenance procedure
Parts for Okuma Vertical Machining Center MC-4VAE
Access the parts list for your equipment in MaintainX.
1/4" Solenoid operated valve
KF0-0041-00
Counterbalance valve
F0014-740-000-01
1/4" Solenoid operated valve
KF0-0042-00
Hydraulic power unit
KF1-0002-00
1/4" Throttle check valve
KF0-0046-00
1/4" Solenoid operated valve
KF0-0041-00
Counterbalance valve
F0014-740-000-01
1/4" Solenoid operated valve
KF0-0042-00
Hydraulic power unit
KF1-0002-00
1/4" Throttle check valve
KF0-0046-00
1/4" Solenoid operated valve
KF0-0041-00
Counterbalance valve
F0014-740-000-01
1/4" Solenoid operated valve
KF0-0042-00
Hydraulic power unit
KF1-0002-00
1/4" Throttle check valve
KF0-0046-00
