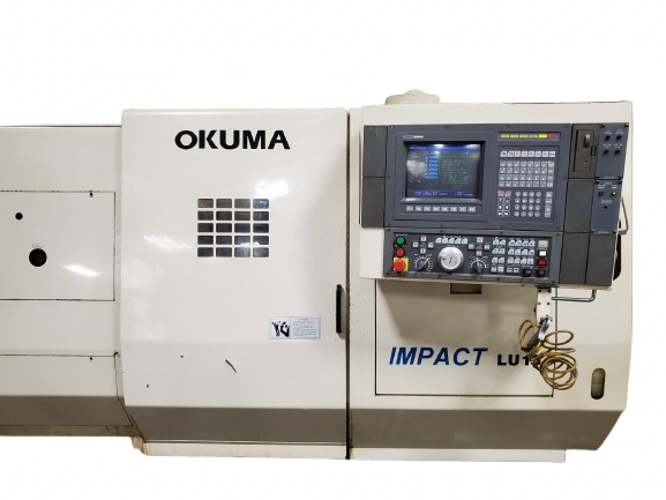

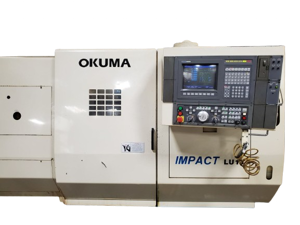

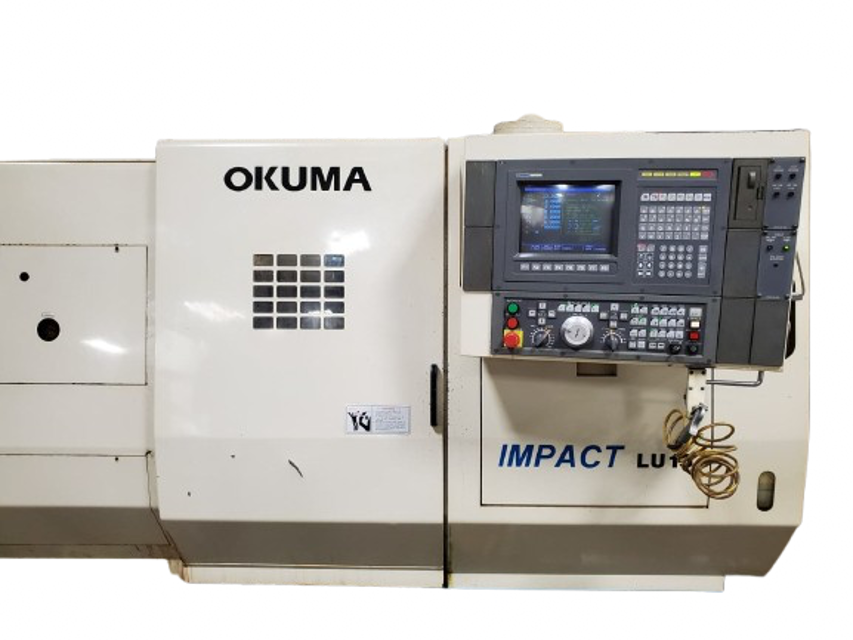

Okuma Lathe LU 15 MY

Remove the cover at the side of the coolant tank

Draw the coolant out of the tank by the pump

Pull out the coolant tank to the right until the pump protrudes from the side cover, and pull it out to the front

After cleaning the tank, refill the coolant tank

Coolant tank must not protrude from the front rail. If the coolant tank is not installed correctly, coolant will leak

Sign off on the coolant tank cleaning

Check the bedways for level and straightness

Flush out the hydraulic power unit and change the hydraulic fluid

Change cooling oil in the spindle cooling unit

Sign off on the lathe maintenance

Verify that there is no chip penetration

Check for the presence of minute and embedded chips

Check for wear at the wiper contact area

Verify that felt is free of chips

Check to see if the felt has hardened

Change hydraulic oil in the hydraulic unit

Supply lubricating oil to the chip conveyor

Change cooling oil in the spindle cooling unit

Enter the hours on the Oil-air lubrication unit

If the hours on the Oil-air lubrication unit exceed 1000, replenish the unit

Sign off on the lathe maintenance
