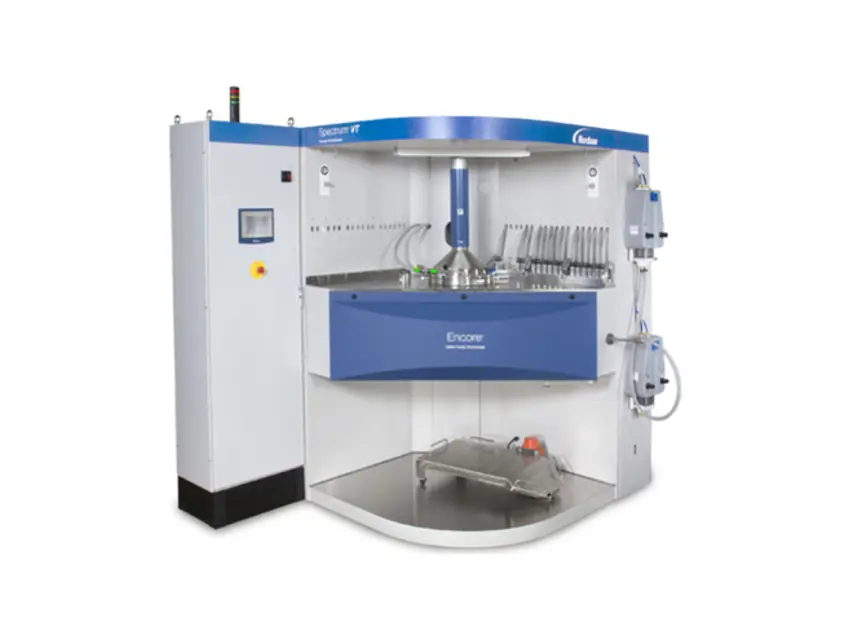

Nordson Powder Feed Center Powder Feed Center

NOTE: You may need to perform these procedures more or less often, depending on your application requirements.

Cartridge Filters/Final Filters:

Check the differential pressure gauges on the pneumatic panel.

• Cartridge Filters: pulsing on demand at 3-in. wc

• Final Filters: warning at 4-in. wc; shutdown at 5-in. wc

Check all filters and replace them if necessary.

Remove the final filters and inspect the fan housing. Signs of powder inside the fan section indicate a leaking cartridge filter.;

NOTE: You may need to perform these procedures more or less often, depending on your application requirements.

Open the drop leg and use a clean, white cloth to check for contaminants. Correct any problems immediately.

Sign off on the compressed air system maintenance

NOTE: You may need to perform these procedures more or less often, depending on your application requirements.

Any changes in vibration and noise levels?

All electrical connections are intact?

Sign off on the fan motor maintenance

NOTE: You may need to perform these procedures more or less often, depending on your application requirements.

Tighten all electrical connections and inspect for loose or broken wires.

Check the electrical system for electrical safety every 12 months. The system must comply with all local, state, and federal codes.;

WARNING: Allow only qualified personnel to perform the following tasks. Follow the safety instructions in this document and all other related documentation.

NOTE: You may need to perform these procedures more or less often, depending on your application requirements.

Disassemble and clean the sieve. Inspect the sieve screen and replace it if there is impact fusion present or the screen is damaged.

Sure Max Powder Transfer System (If Applicable):

Disassemble and clean the Sure Max reclaim receiver. Inspect each color's reclaim filter and replace if damaged.

Empty the Sure Max scrap receiver. Inspect the scrap filter and replace if damaged.

Check all vacuum hoses for blockages. Clean or replace them if necessary.
