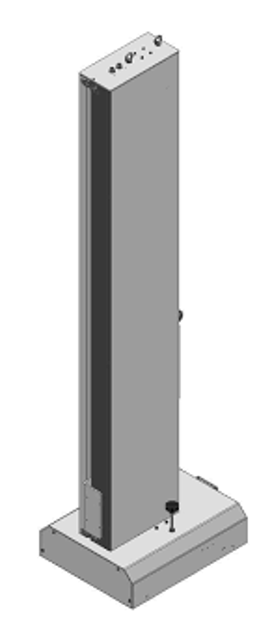

Nordson Reciprocator HF30 270

Create an account to install this asset package.

Maintenance Plans for Nordson Reciprocator Model HF30 270

Integrate maintenance plans directly into your work orders in MaintainX.

Encoder Replacement

Power supply to the machine turned off

Upload a photo of the front safety guard removed

Junction box opened and encoder disconnected

Joint clamp near the encoder loosened and screws unscrewed

New encoder assembled on the support, shaft inserted into the hose of the joint and blocked with the relative clamp

Encoder connected to the junction box

Junction box and the front safety guard of the machine closed

Sign off on the encoder replacement

Run this procedure

Hardware Limit Of The Stroke Adjustment

Power supply to the machine turned off

Gun supporting-arm removed

Main panel removed by unscrewing the screws that fix it to the main structure 32

Screw that fix the limit switch group unscrewed and slid up to the required position. 33

ATTENTION: make sure that the electrical cable is correctly positioned.

Sign off on the stroke adjustment

Run this procedure

Belt Replacement

ATTENTION: to perform this maintenance two persons are necessary.

Power supply to the machine turned off

Gun supporting-arm removed

Rear door removed

Main panel removed by unscrewing the screws that fix it to the main structure

Gun supporting-arm positioned and blocked so as the counterweight is in line with the opening

Operated on the nuts to slacken or tension the belt

All the counterweight plates removed as per Chapter 12.8

Belt marked (up and down) to locate the assembly position

Run this procedure

Counterweight Sliding Guides Replacement

Turn off the power supply to the machine

Remove the rear door

Position and block the gun supporting-arm so as the counterweight is in line with the opening

Refer to Chapter 12.8 to remove all the counterweight plates

Operate on the nuts, indicated in the picture 30, to slacken the belt

Tilt sideways the counterweight plate, shown in the figure, so as to remove the sliding guides from its seats with a suitable wrench

ATTENTION: it is necessary to hold the counterweight structure so as to avoid that it falls down. Hence a second operator is required for safety reason

Replace them with new counterweight guides

Adjust the belt tension (see the relative Chapter)

Run this procedure

Belt Tension Adjustment

Warning: Ensure the power supply to the machine is turned off before starting the procedure.

Power supply to the machine turned off

Rear door removed and trolley moved

Operated on the nuts to adjust belt tension

Checked the plates are parallel that clamp the belt

Upload a photo of the belt tension diagram

Rear door assembled back

Sign off on the belt tension adjustment
