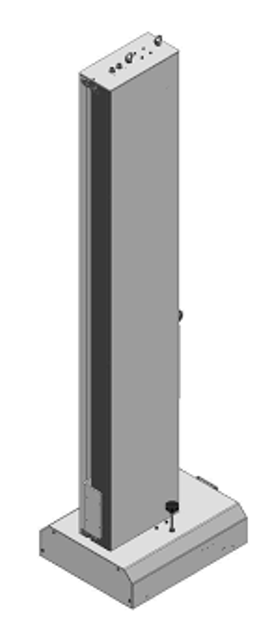

Nordson Reciprocator HF30 320

Power supply to the machine turned off

Trolley moved so that the counterweight slides up/down to reach the opening

ATTENTION: to make the work easier and for safety reasons, it is better that the following operations are carried out by two operators.

Plates of the counterweight added or removed to balance the machine

Sign off on the counterweight adjustment

Power supply to the machine turned off and guns supporting-arms removed

Main panel removed by unscrewing the screws that fix it to the main structure

Machine balanced so that the trolley is in a useful position for the operator

See Chapter 12.8 to balance the machine

Nut that blocks the eccentric hubs of the wheels loosened

See picture 21 to check the correct disposition of the wheels

Eccentric hub turned until the wheel is in contact with the guide using a suitable wrench

NOTE: When finished, the wheel must turn easily by hand but create a certain friction on the guide

ATTENTION: it is important that there is no play between the wheel and the guide but at the same time the wheel must not be blocked

Turn off the power supply to the machine

Position and block the gun supporting-arm so as the counterweight is in line with the opening

Refer to Chapter 12.8 to remove all the counterweight plates

Operate on the nuts, indicated in the picture 30, to slacken the belt

Tilt sideways the counterweight plate, shown in the figure, so as to remove the sliding guides from its seats with a suitable wrench

ATTENTION: it is necessary to hold the counterweight structure so as to avoid that it falls down. Hence a second operator is required for safety reason

Replace them with new counterweight guides

Adjust the belt tension (see the relative Chapter)

Power supply to the machine turned off

Rear door removed and trolley moved

Operated on the nuts to adjust belt tension

Checked the plates are parallel that clamp the belt

Enter the belt tension as per the diagram

Sign off on the belt tension adjustment

Warning: Use suitable wrench for the procedure

Loosen the 4 nuts that block the hubs of the wheels

Upload a photo to check the correct disposition of the wheels

Turn the eccentric hub to increase the play between the wheel and the guide

Remove the 4 wheels (2 eccentric + 2 concentric)

Assemble the 4 new wheels (2 eccentric + 2 concentric), keeping the same positions

Do the reverse operations for the reassembling

Sign off on the wheel replacement
