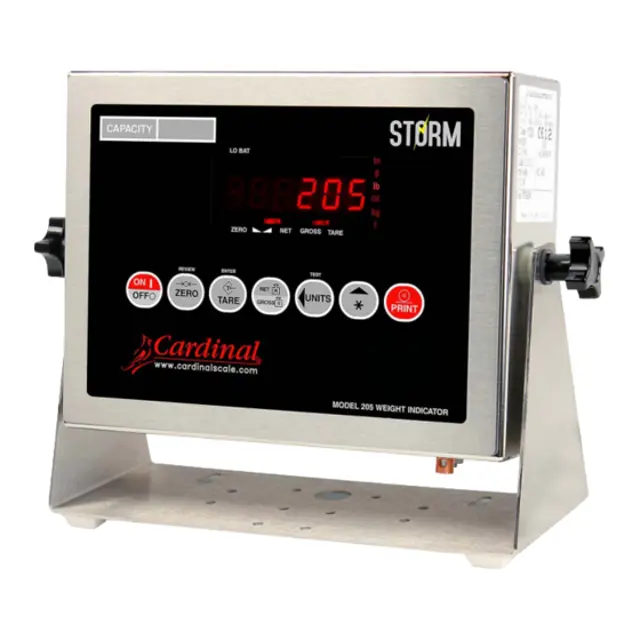

Cardinal Scale Manufacturing Weight Indicator 205

Warning: Do not use tools! Finger tighten only!

Excess cable removed from the instrument enclosure

Cable gland connectors securely tightened

Unused gland connectors are plugged

No cables or wires exposed between the main housing and rear panel

Rear panel placed onto the main housing

Note: Follow a diagonal pattern when tightening the acorn nuts.

Sign off on the rear panel reinstallation

Warning: For trained personnel only

Refer to the Setup and Calibration section for an explanation of the Auto Shut-Off feature

Is the AC power cord plugged into a wall outlet after each work shift?

Avoid charging and discharging the battery in extreme cold?

Note: Low temperatures decrease the capacity of the battery significantly causing a greater depth of discharge at colder temperatures than at room temperature

Avoid storing the battery after discharging?

Note: If the battery is to be left for several days or more, make certain that it is charged before storage

Sign off on the battery performance optimization

AC power to the indicator removed

Three acorn nuts securing the Battery Access Cover removed

Cover removed, exposing the battery access opening

Battery partially out of the opening due to internal spring

End of the battery grasped and slid out of the opening

Battery Access Cover replaced and three acorn nuts installed

AC power to the indicator removed

Three acorn nuts securing the Battery Access Cover removed

Negative polarity markings of the battery positioned facing up

Alignment notch in the battery is to the left

Battery slid into the opening, compressing the battery ejector spring

Battery almost flush with the bottom of the indicator

Three acorn nuts installed, securing the battery in place

The battery can be recharged with the indicator’s built-in charger.

Note that the battery can be left connected to the charger indefinitely, without risk of damage. Cyclic Operation

When operating the indicator totally from battery power and only recharging when the batteries are low, place the Battery Charge Mode jumper(J1) in the FULL position.

For the location of the Battery Charge Mode jumper(J1), refer to Figure No. 6.

When operating the indicator from commercial power and using the battery to supply power only in the event of a power loss, place the Battery Charge Mode jumper(J1) in the TRICKLE position.

For the location of the Battery Charge Mode jumper(J1), refer to Figure No. 6.

When the battery installed in a indicator needs to be charged, simply plug the AC power cord into a wall outlet and charging will begin.

Note that operating the indicator during charging only minimally affects the charge time of the battery. The indicator can operate at a 100% duty cycle and will only prolong the charge time by less than 20%.
