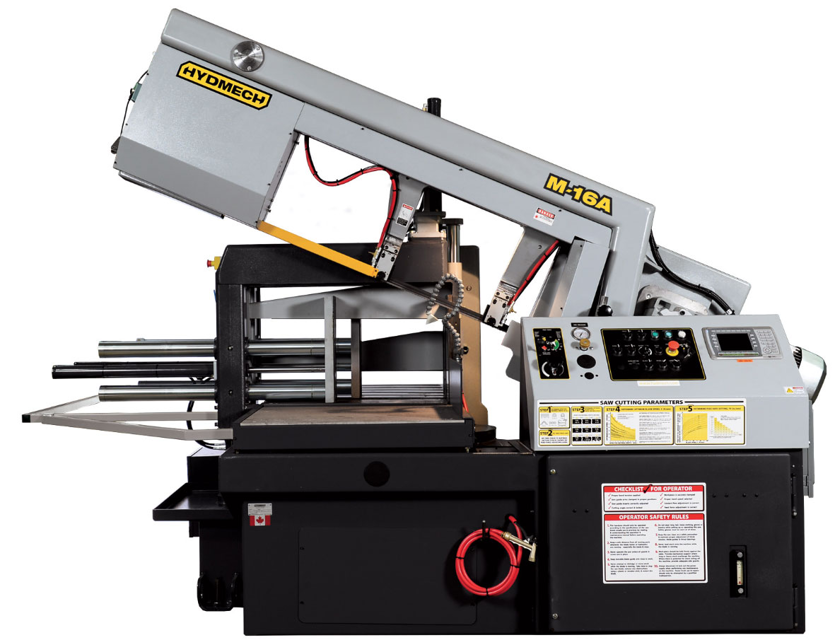

Hyd‑Mech Group Pivot Band Saw M16A

Create an account to install this asset package.

Maintenance Plans for Hyd‑Mech Group Pivot Band Saw Model M16A

Integrate maintenance plans directly into your work orders in MaintainX.

Blade Height Adjustment

Warning: This procedure requires trained personnel with PPE!

Head lowered to the bottom of its stroke?

Guide arm moved to its fully open position?

Feed rate cover and cable removed?

Hex nut loosened?

Direction of cylinder rod turn

Blade not touching the out-feed table?

Hex nut tightened?

Feed rate cable and cover mounted?

Run this procedure

Blade Inspection

Inspect the blade wheels for wear or damage

Describe the damage if any

Blade tracking adjustment should always begin at the wheel where the tracking is farthest out of specification.

M16 wheel measurement

M20 wheel measurement

Both the drive and idler wheels are factory set a certain distance from the wall behind the wheel. Adjustment should not be required unless the wheel is being replaced.

Drive wheel check

Idler wheel check

On the drive wheel there is a large hex head bolt and four set screws in a “push/pull” arrangement. For the idler wheel there is single adjuster assembly in the center of the idler shaft under the cover on the front of the head.

Run this procedure

Drive Wheel Adjustment

Warning: Ensure the machine is turned off and unplugged before starting the procedure.

Mounting bolts (A) loosened but remain snug

Bolt assemblies (B & C) adjusted by equal amounts

Blade tension slightly released

Bolts “B” loosened

Bolts “C” turned in or out by equal amounts

Bolts “B” tightened

Tracking movement checked after each one quarter turns of bolts “C”

Tracking is within specification

Run this procedure

Hydraulic Oil Level Maintenance

OIL LEVEL & REPLACEMENT:

The oil level should be maintained in the upper half of the level gauge. Normally the rate of oil consumption will be very low and it should be unnecessary to add oil more often than at filter changes.

Add oil only to the top line on the gauge.: To change the oil, it is necessary to drain the tank ( a drain plug is found on the bottom of the tank) and fill it to 1/3 full level with the new oil, operate through several fully automatic cycles with the index set to full stroke and the head to full rise.

Drain the tank again, and finally fill the tank with the new oil. Hydraulic tank capacity is approximately 11 US gallons.

Recommended replacement oils:

Chevron AW Hydraulic Oil 46

Esso NUTO H46

Mobil Mobil DTE 25

Texaco Rando HD 46

Run this procedure

6000 Hourly / 2 Yearly Hydraulic Oil Change

Warning: This procedure requires trained personnel with PPE!

Milky or hazy oil color

Burnt smell

Varnish or sludge formation
