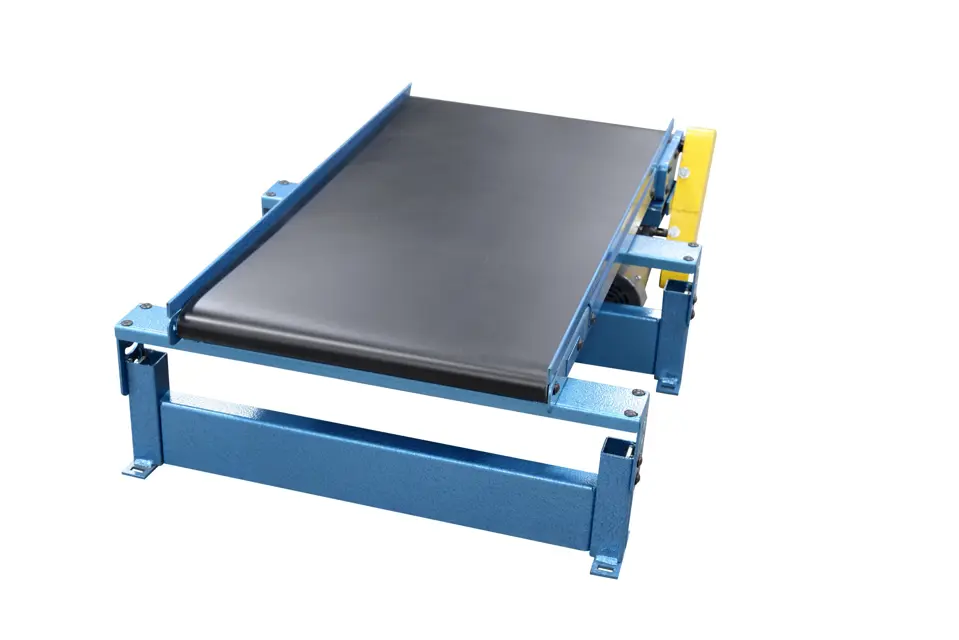

New London Engineering Conveyor 505

Check and adjust belting take up tension

Track the belting at both ends of the conveyor

Check the belt splice for any damage

Loosen the table bearing set screws

Replace the caster with a New London Engineering replacement part

Support the turntable while lifting

Mount replacement parts properly

Recheck replacement parts after one day of use

Enter the air pressure of the drives tire (Model 181-Turntable)

Is the air pressure within the recommended range?

Select the type of bearings present

Are the bearings permanently lubricated?

Select the lubricant used for lubrication

Was the lubrication process completed without over-lubrication?

Clean off grease zerk fittings before lubrication

Ensure all mounting bolts are tightened securely

Check that the reducer sprocket is installed as close to the reducer as possible

Is the reducer clean for better heat dissipation?

Enter the current oil level at the level plug

Is the oil level at the bottom of the threaded hole of the level plug?

Is extra oil required due to conveyor and reducer inclination?
