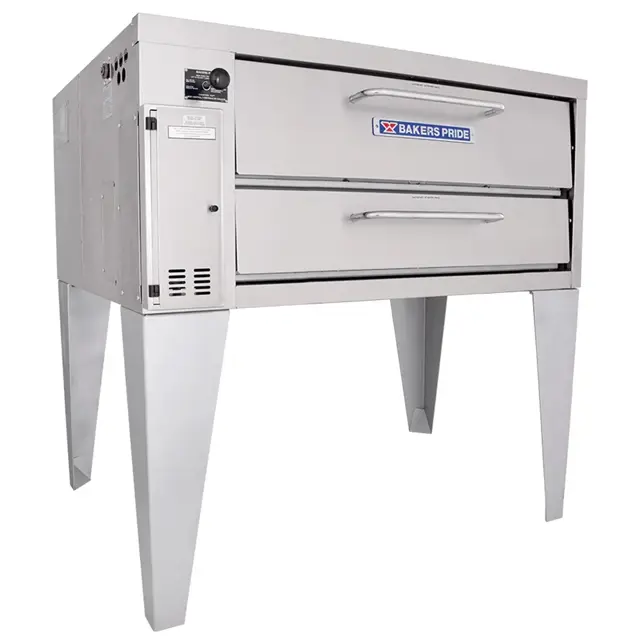

Bakers Pride Gas Deck Oven Y800

Ignition Module and Hot Surface Ignitor Check

Verify the ignition module energizes the hot surface ignitor when turned on.

Check if the hot surface ignitor reaches the required current to open the gas valve.

Flame Sensor and Burner Operation

Ensure the flame sensor completes the circuit by sensing the flame.

Is the burner flame YELLOW to simulate wood burning?

Booster Burner Location and Visual Inspection

Locate the Il Forno booster burner at the center rear of the oven cavity.

Is the booster burner visible through the front opening?

Light the burners and set the thermostat

Allow the flame to burn for a few minutes to settle

Adjust the air/fuel mixture if necessary

Turn the adjusting disk towards the gas/air port to reduce air

Gradually turn the adjusting disk away from the gas/air port to increase air

Observe the flame for a minute to ensure proper adjustment

Tighten the locking ring against the adjustment disk

Is the timer set to the correct time?

Does the timer turn the main burner on at the set time?

Can the main burner be lit manually by turning the timer switch to 'ON'?

Turn the gas supply to the oven ON

Depress and turn the combination gas cock knob to the PILOT position

Depress the dial or the red button and hold

Apply a flame to the pilot burner to light

Did the pilot flame stay lit after releasing the dial/button?

Remove the pilot adjustment cap

Adjust the flame size using a screwdriver

Set the temperature dial to 300°

Wait for the oven temperature to rise and remain constant, then turn the dial to the lowest setting

Confirm the main valve is closed

Remove the knob from the thermostat body

Adjust the by-pass flame using the upper screw marked 'B'

Turn the screw counter-clockwise to increase the flame height

Turn the screw clockwise to reduce the flame height

Ensure there is a minimal height flame that maintains itself along the burners

Replace the dial and test the temperature settings
