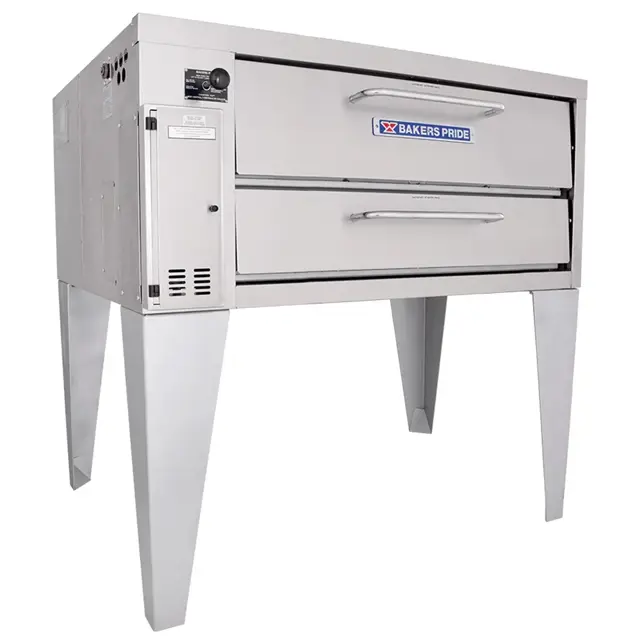

Bakers Pride Gas Deck Oven Y802

Set the temperature dial to 300°

Monitor oven temperature until it rises and remains constant, then turn the dial to the lowest setting

Confirm the main valve is closed

Remove the knob by pulling straight from the thermostat body

Adjust the by-pass flame using the upper screw marked 'B' on the thermostat body

Turn the screw counter-clockwise to increase the flame height

Turn the screw clockwise to reduce the flame height

Verify that the flame maintains a minimal height along the burners

Replace the dial and test by turning the temperature up and down several times

Is the timer set to the correct time?

Does the timer turn the main burner on at the set time?

Can the main burner be lit manually by turning the timer switch to 'ON'?

!WARNING: Conversion kits shall be installed by a qualified service agency in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction.

Consult with your Technical Service Representative to order the correct parts for the oven model you will be converting.

Gas Shut-off and Regulator Replacement

Remove the two screws that hold the regulator in place on the combination valve and install a new gasket and the new regulator.

Ensure the regulator gasket is in place with two circular cut-outs over small posts in the valve body casting.

Evenly tighten the two screws holding the regulator in place.

Place the conversion kit label on the side of the valve body to inform others that the conversion has taken place.

Ensure all appliances on the same gas supply line are running at their highest burner setting.

Locate the pressure tap in the control compartment along the gas supply piping.

Connect a manometer to the pressure tap and record the gas pressure while the burners are running at their highest setting.

Does the gas supply pressure match the oven’s rating plate?

Select the type of valve equipped in the oven.

Adjust the pressure using the adjustment screw on the 7000 combination valve, if applicable.

Set the thermostat dial to the desired temperature

Allow the flame to burn for a few minutes to settle

Is the flame sharply formed with blue cone shapes?

Are there yellow tips flickering briefly if using propane?
