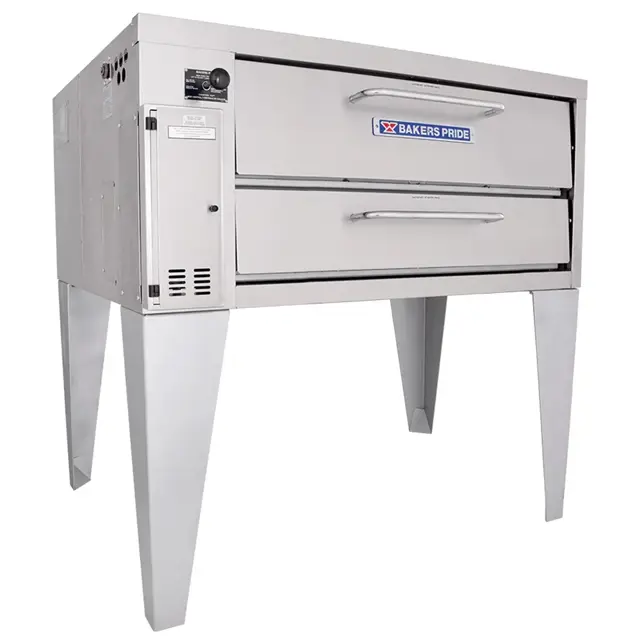

Bakers Pride Gas Deck Oven D250

Light the burners and set the thermostat

Allow the flame to burn for a few minutes to settle

Adjust the air/fuel mixture if necessary

Turn the adjusting disk towards the gas/air port to reduce air

Gradually turn the adjusting disk away from the gas/air port to increase air

Observe the flame for a minute to ensure proper adjustment

Tighten the locking ring against the adjustment disk

Ensure all appliances on the same gas supply line are running at their highest burner setting.

Locate the pressure tap in the control compartment along the gas supply piping.

Connect a manometer to the pressure tap and record the gas pressure.

Is the gas supply pressure matching the oven’s rating plate?

Select the type of valve equipped in the oven.

If equipped with a 7000 combination valve, adjust the screw on the front of the valve to match the gas supply.

Ignition Module and Hot Surface Ignitor Check

Verify the ignition module energizes the hot surface ignitor when turned on.

Check if the hot surface ignitor reaches the required current to open the gas valve.

Flame Sensor and Burner Operation

Ensure the flame sensor completes the circuit by sensing the flame.

Is the burner flame YELLOW to simulate wood burning?

Booster Burner Location and Visual Inspection

Locate the Il Forno booster burner at the center rear of the oven cavity.

Is the booster burner visible through the front opening?

WARNING: Qualified Service Agency Required

Confirm installation by a qualified service agency

Remove the two screws holding the regulator in place

Install a new gasket and the new regulator

Ensure the regulator gasket is correctly positioned

Evenly tighten the two screws holding the regulator

Set the temperature dial to 300°

Monitor oven temperature until it rises and remains constant

Turn the temperature dial to the lowest setting

Confirm the main valve is closed

Remove the knob from the thermostat body

Adjust the by-pass flame using the upper screw marked 'B'

Turn the screw counter-clockwise to increase flame height

Turn the screw clockwise to reduce flame height

Ensure the flame maintains minimal height along the burners
