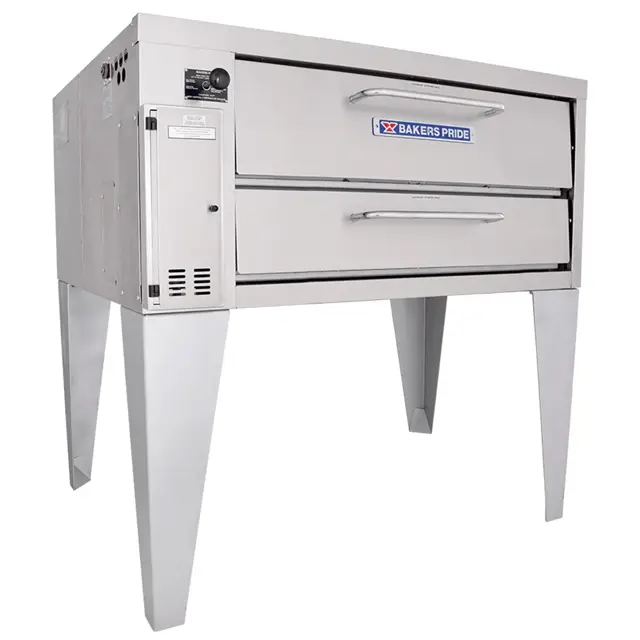

Bakers Pride Gas Deck Oven 351

Ignition Module and Hot Surface Ignitor Check

Verify the ignition module energizes the hot surface ignitor when turned on.

Check if the hot surface ignitor reaches the required current to open the gas valve.

Flame Sensor and Burner Operation

Ensure the flame sensor completes the circuit by sensing the flame.

Is the burner flame YELLOW to simulate wood burning?

Booster Burner Location and Visual Inspection

Locate the Il Forno booster burner at the center rear of the oven cavity.

Is the booster burner visible through the front opening?

Set the thermostat dial to the desired temperature

Allow the flame to burn for a few minutes to settle

Is the flame sharply formed with blue cone shapes?

Are there yellow tips flickering briefly if using propane?

Set the temperature dial to 300°

Wait for the oven temperature to rise and remain constant, then turn the dial to the lowest setting

Confirm the main valve is closed

Remove the knob from the thermostat body

Adjust the by-pass flame using the upper screw marked 'B'

Turn the screw counter-clockwise to increase the flame height

Turn the screw clockwise to reduce the flame height

Verify the flame height is minimal and maintains itself along the burners

Replace the dial and test the temperature settings

Turn the gas supply to the oven ON

Set the combination gas cock knob

Slightly depress and turn the combination gas cock knob to the PILOT position

Depress the dial or the red button and hold

Apply a flame to the pilot burner to light

Continue to hold the dial/button depressed for at least 30 seconds

Did the pilot flame stay lit after releasing the dial/button?

Ensure all appliances on the same gas supply line are running at their highest burner setting.

Locate the pressure tap in the control compartment along the gas supply piping.

Connect a manometer to the pressure tap and record the gas pressure while the burners are running at their highest setting.

Does the gas supply pressure match the oven’s rating plate?

Select the type of valve equipped in the oven.

If equipped with a 7000 combination valve, adjust the screw on the front of the valve to match the gas supply.
