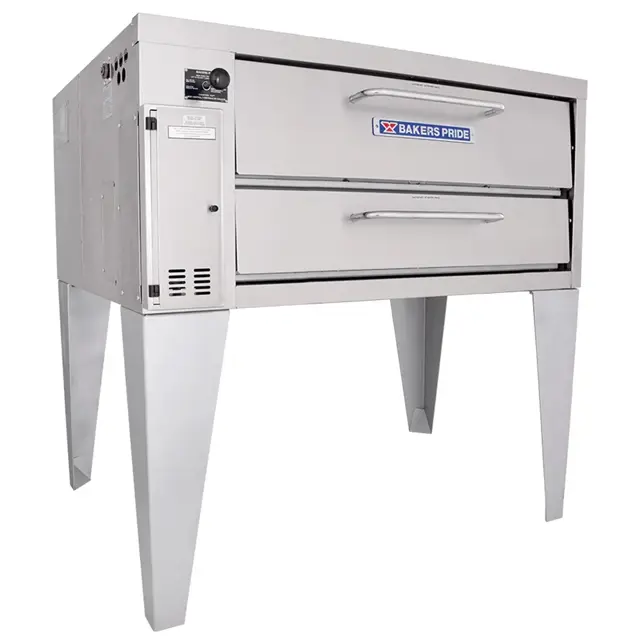

Bakers Pride Gas Deck Oven 4151

Ensure all appliances on the same gas supply line are running at their highest burner setting.

Locate the pressure tap in the control compartment along the gas supply piping.

Connect a manometer to the pressure tap and record the gas pressure.

Is the gas pressure matching the oven’s rating plate?

Select the type of valve equipped in the oven.

Adjust the gas pressure using the adjustment screw on the 7000 combination valve or the traditional regulator for pilot safety valve.

Set the thermostat dial to the desired temperature

Allow the flame to burn for a few minutes to settle

Is the flame sharply formed with blue cone shapes?

Are there yellow tips flickering briefly if using propane?

Is the timer set to the correct time?

Does the timer turn the main burner on at the set time?

Can the main burner be lit manually by turning the timer switch to 'ON'?

WARNING: Qualified Service Agency Required

Consult with Technical Service Representative to order correct parts for the oven model

Gas Shut-off and Regulator Replacement

Remove the two screws holding the regulator in place on the combination valve

Remove the gasket and install a new gasket and the new regulator

Ensure the regulator gasket is in place with two circular cut-outs over small posts in the valve body casting

Evenly tighten the two screws holding the regulator in place

Place conversion kit label on the side of the valve body

Ignition Module and Hot Surface Ignitor Check

Verify the ignition module energizes the hot surface ignitor when turned on.

Check if the hot surface ignitor reaches the required current to open the gas valve.

Flame Sensor and Burner Operation

Ensure the flame sensor completes the circuit by sensing the flame.

Is the burner flame YELLOW to simulate wood burning?

Booster Burner Location and Visual Inspection

Locate the Il Forno booster burner at the center rear of the oven cavity.

Is the booster burner visible through the front opening?
