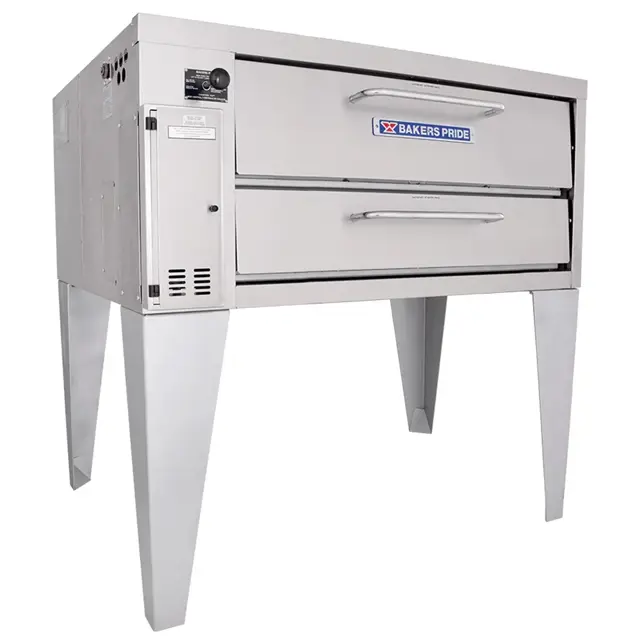

Bakers Pride Gas Deck Oven 151

Light the burners and set the thermostat

Allow the flame to burn for a few minutes to settle

Adjust the air/fuel mixture if necessary

Turn the adjusting disk towards the gas/air port to reduce air

Gradually turn the adjusting disk away from the gas/air port to increase air

Observe the flame for a minute to ensure proper adjustment

Tighten the locking ring against the adjustment disk

Set the temperature dial to 300°

Wait for the oven temperature to rise and remain constant, then turn the dial to the lowest setting

Ensure the main valve is closed

Remove the knob from the thermostat body

Adjust the by-pass flame using the upper screw marked 'B'

Turn the screw counter-clockwise to increase the flame height

Turn the screw clockwise to reduce the flame height

Verify that the flame maintains a minimal height along the burners

Replace the dial and test the temperature settings to ensure minimal flame maintenance

WARNING: Qualified Service Agency Required

Confirm the qualified service agency details

Remove the two screws holding the regulator in place

Install a new gasket and the new regulator

Ensure the regulator gasket is correctly positioned

Evenly tighten the two screws holding the regulator

Turn the gas supply to the oven ON

Slightly depress and turn the combination gas cock knob to the PILOT position

Depress the dial or the red button and hold

Apply a flame to the pilot burner to light

Did the pilot flame stay lit after releasing the dial/button?

Repeat lighting steps if the pilot flame goes out

Ignition Module and Hot Surface Ignitor Check

Verify the ignition module energizes the hot surface ignitor when turned on.

Check if the hot surface ignitor reaches the required current to open the gas valve.

Flame Sensor and Burner Operation

Ensure the flame sensor completes the circuit by sensing the flame.

Is the burner flame YELLOW to simulate wood burning?

Booster Burner Location and Visual Inspection

Locate the Il Forno booster burner at the center rear of the oven cavity.

Is the booster burner visible through the front opening?
