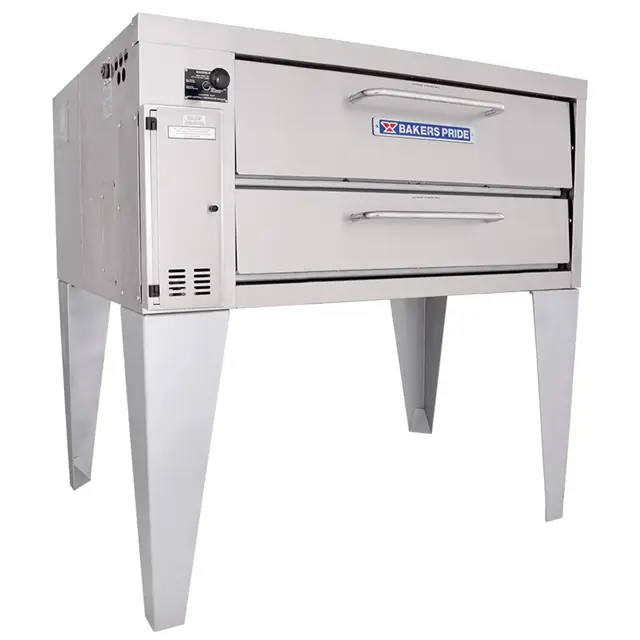

Bakers Pride Gas Deck Oven Y600

Is the timer set to the correct time?

Does the timer turn the main burner on at the set time?

Can the main burner be lit manually by turning the timer switch to 'ON'?

Turn the gas supply to the oven ON

Slightly depress and turn the combination gas cock knob to the PILOT position

Depress the dial or the red button and hold

Apply a flame to the pilot burner to light

Did the pilot flame stay lit after releasing the dial/button?

Repeat the lighting steps if the pilot flame goes out

WARNING: Qualified Service Agency Required

Confirm the qualified service agency details

Remove the two screws holding the regulator in place

Install a new gasket and the new regulator

Ensure the regulator gasket is correctly positioned

Evenly tighten the two screws holding the regulator

Ignition Module and Hot Surface Ignitor Check

Verify the ignition module energizes the hot surface ignitor when turned on.

Check if the hot surface ignitor reaches the required current to open the gas valve.

Flame Sensor and Burner Operation

Ensure the flame sensor completes the circuit by sensing the flame.

Is the burner flame YELLOW to simulate wood burning?

Booster Burner Location and Visual Inspection

Locate the Il Forno booster burner at the center rear of the oven cavity.

Is the booster burner visible through the front opening?

Ensure all appliances on the same gas supply line are running at their highest burner setting.

Locate the pressure tap in the control compartment along the gas supply piping.

Connect a manometer to the pressure tap and record the gas pressure.

Is the gas pressure matching the oven’s rating plate?

Select the type of valve equipped in the oven.

Adjust the gas pressure using the adjustment screw on the 7000 combination valve or the traditional regulator for pilot safety valve.
