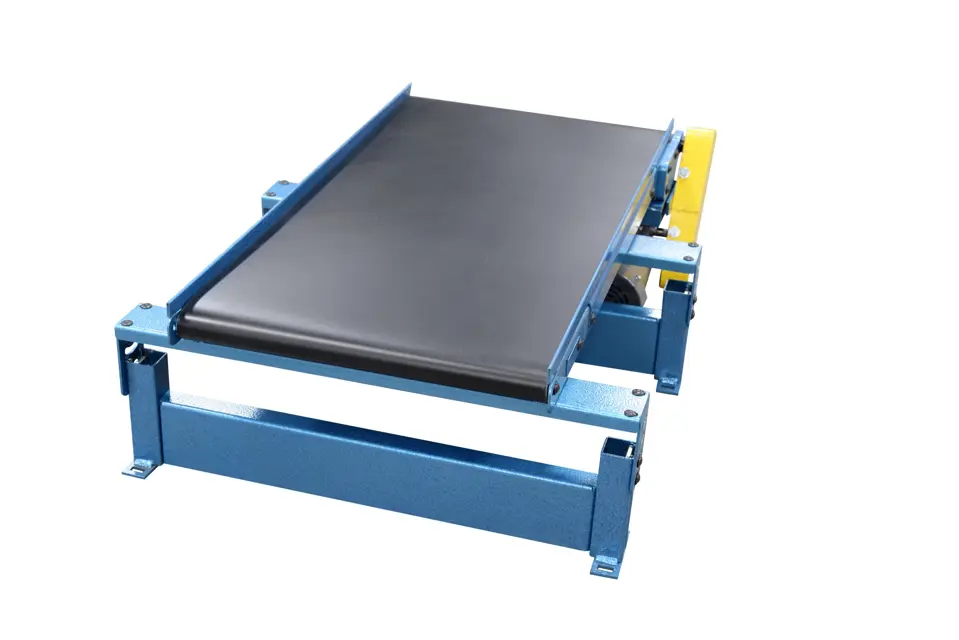

New London Engineering Conveyor 301

Lock off equipment before maintenance

Ensure all movable equipment is stationary

Retighten Setscrews and Drive Mounts

Support the turntable while lifting

Bearing Removal and Replacement

Mount replacement parts properly

Recheck replacement parts after one day of use

WARNING: Never overload the table or drive

Check and adjust belting take up tension

Track the belting at both ends of the conveyor

Check the belt splice for any damage

Verify if the gearmotor requires lubricant change

Select the ambient temperature range

Select the lubricant based on the ambient temperature

Drain the old lubricant from the reducer

Refill the reducer with the selected lubricant

Check for any leaks after refilling

Clean the area after lubricant replacement

Enter the air pressure of the drives tire (Model 181-Turntable)

Is the tire air pressure within the recommended range?

Select the type of bearings present

Are the bearings permanently lubricated?

Lubricate non-permanently lubricated bearings with approved lubricants

Clean grease zerk fittings before lubrication

Wipe excess lube from shaft seals after lubrication
