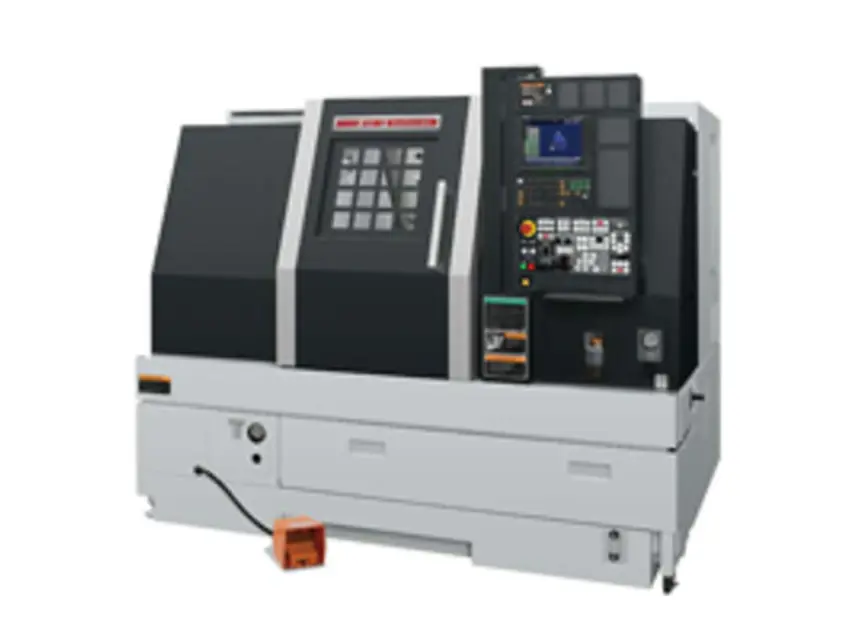

Mori Seiki CNC Lathe DuraTurn 2050

DANGER! Turn OFF the main power and disconnect the plant-side power supply (breaker)

WARNING! Replace the window at regular intervals (once every 5 years). Stop using the machine and replace the window immediately in any of the following cases: When damaged, When cracked, When hit with a strong impact, When visibility of the window cannot be secured.

NOTE! Please contact the Mori Seiki Service Department and obtain specified parts when replacing the window. The machining chamber observation window is a consumable and is not covered by the warranty.

Silicon on the window frame plate removed?

Oil- and heat-resistant silicon applied to the edges of outside face of the new window?

WARNING! Turn OFF the main power

Rotate the valve CW to shut off the compressed air supply

Turn the manual drain cock in the counterclockwise direction to release residual pressure

Confirm the pressure gage indicates 0 MPa

Inspect/replace the air filter element

Removing Air Filter Assembly Case

Slide the lock button downward and rotate the assembly case 45 degrees CW or CCW

Pull the assembly case downward to remove

WARNING! Turn OFF the main power

CAUTION! Protective glasses must be worn to prevent eye damage from dust or foreign matter (those who are wearing glasses included)

Filter element cleaned with kerosene and blown compressed air through

Is the filter element badly fouled or damaged?

Sign off on the line filter cleaning

WARNING! Turn OFF the main power

Suction filter and fill port filter removed

CAUTION! Protective glasses must be worn to prevent eye damage form dust or foreign matter (those who are wearing glasses included)

Suction filter and fill port filter cleaned with kerosene and blown compressed air

Sign off on the filter cleaning

Turn OFF the main power and control power supplies

NOTE! Confirm all machine operations have come to a complete stop

Confirm that the digital pressure display indicates 3.5 MPa
