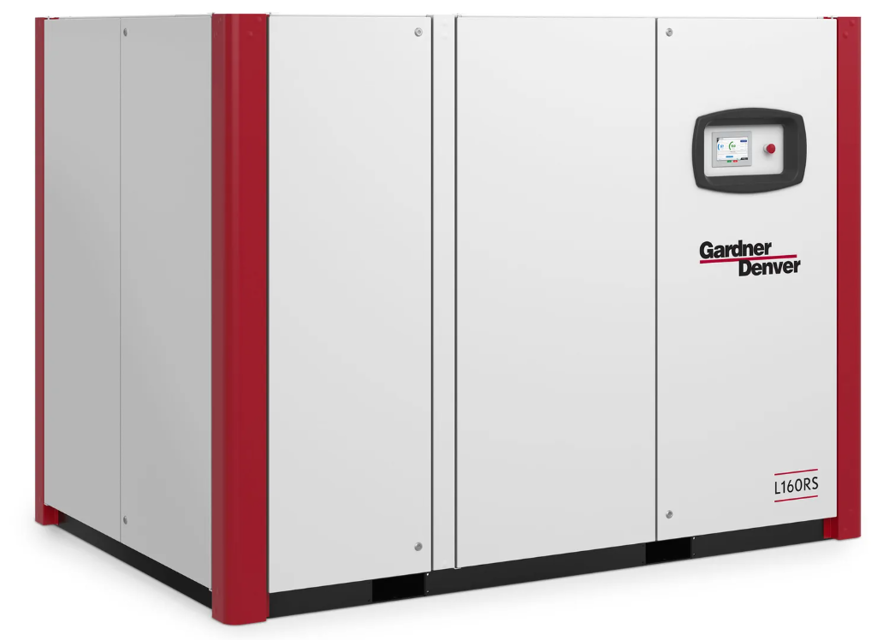

Gardner Denver Compressor L160RS

Measure the voltage between terminals DC+ and DC-

Measure the voltage between the terminal DC+ and the chassis

Measure the voltage between the terminal DC- and the chassis

Is the voltage zero for all three measurements?

Inspect and replace if necessary

Open the mesh cover on the intake filter

Check that all the parts are in place

Was the area cleaned after the procedure?

Describe any issues encountered during the filter change

Shut down the compressor and relieve the system of all pressure

Disconnect, lockout, and tagout the power supply to the compressor package

Look for leaks and address any spilled oil immediately

Preparation for Separator Change

Switch off the compressor and ensure it is depressurized

Detach the plastic oil extraction pipe

Inspect and visually check for leakage at Shaft Seal
