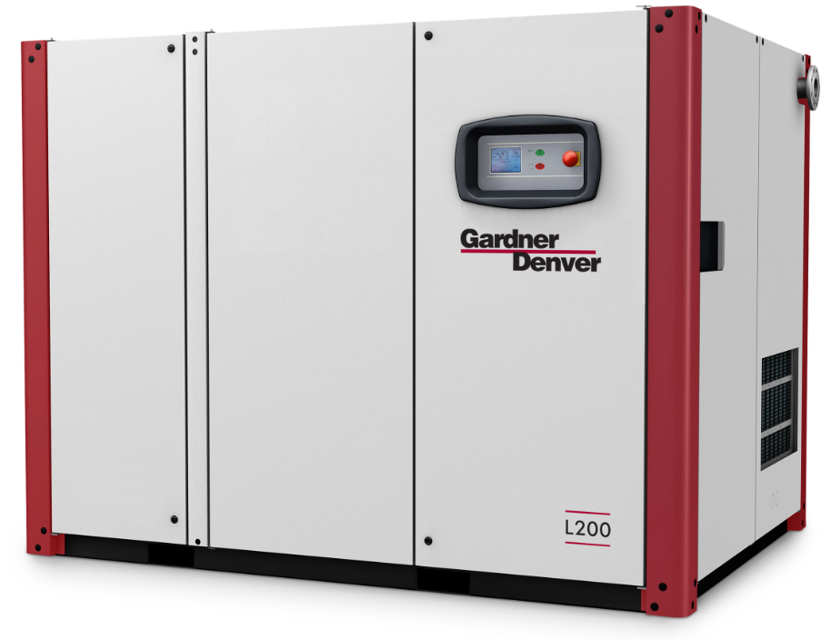

Gardner Denver Compressor L200

Inspect and replace if necessary

Inspect and clean Scavenge Line

Replace Scavenge Line check valve if necessary

Inspect and service Inlet Valve if necessary

Re-grease Motor Bearings if necessary

Inspect and replace Min. Pressure/Check Valve if necessary

Inspect and replace Condensate Drains if necessary

Ensure the screw compressor is out of operation, depressurized, and secured from being switched on again.

Confirm the air filter is not removed during operation.

Switch OFF the main disconnect switch and secure it against switching on again.

Open the enclosure to create access.

Check filter elements for condition.

Replace filter elements if heavily soiled.

Shut down the compressor and relieve the system of all pressure

Disconnect, lockout, and tagout the power supply to the compressor package

Slowly open the oil screw plug to relieve residual pressure

Open the oil drain from the pressure reservoir

Drain the oil at operating temperature through the drain hose

Ensure the screw compressor is out of operation, depressurized, and secured from being switched on again

Confirm that the air filter is not removed while the compressor is operating

Check the visual intake filter monitor for red service field indication

Inspect the air filter for dust accumulation

Switch off the main disconnect switch

Open the enclosure to create access
