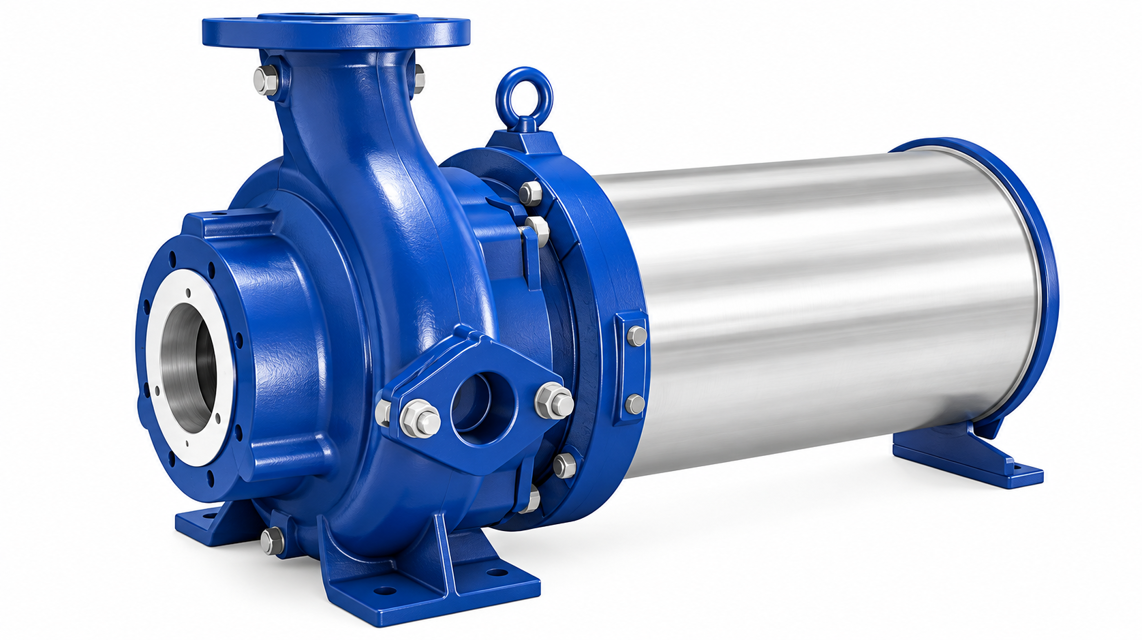

KSB SE & Co. KGaA Submersible Motor Pump KRT K 80-253

Create an account to install this asset package.

Maintenance Plans for KSB SE & Co. KGaA Submersible Motor Pump Model KRT K 80-253

Integrate maintenance plans directly into your work orders in MaintainX.

4000 Hourly / 1 Yearly Insulation Resistance Inspection

Pre-Inspection Note

In demanding conditions (e.g. high mechanical and hydraulic loads) reduce the maintenance interval accordingly. For a consultation or any queries please contact KSB Service.

Preparation

Ensure the pump set has been disconnected in the control cabinet.

Use an insulation resistance measuring device.

Verify the maximum measuring voltage is 500 V (maximum permissible voltage 1000 V).

Measure the winding to chassis ground

Connect all winding ends together.

Measure the insulation resistance of the winding to chassis ground.

Run this procedure

4000 Hourly / 1 Yearly Lifting Chain and Rope Inspection

NOTE: In demanding conditions, reduce the maintenance interval accordingly. For a consultation or any queries please contact KSB Service.

The pump set has been lifted out of the pump sump and cleaned. (Applies to installation type K only.)

Inspection and Replacement

Inspect the lifting chain/rope and fasteners (shackles) for any visible damage.

Replace any damaged components with original spare parts.

Assessment and Compliance

Assess the lifting chain / lifting rope / shackle in accordance with the locally applicable regulations for lifting tackle.

Observe the operating manual of the lifting accessories.

Run this procedure

10000 Hourly / 3 Yearly Sensors Inspection

Pre-Inspection Notes

Read the procedure description carefully

Ensure to use a commercially available ohmmeter for resistance measurement

Temperature Sensors Inspection

Measure resistance at the core ends of the control cable

If specified tolerances are exceeded, disconnect the connection cable at the pump set and repeat the check inside the motor

If tolerances are exceeded inside the motor, open and overhaul the motor part

Use back-up sensors if the original sensors are defective

Leakage Sensor Inspection

Run this procedure

4000 Hourly / 1 Yearly Lifting Accessories Inspection

Inspection Note

In demanding conditions (e.g. high mechanical and hydraulic loads) reduce the maintenance interval accordingly. For a consultation or any queries please contact KSB Service.

Pump Set Status

The pump set has been lifted out of the pump sump and cleaned. (Applies to installation type K only.)

Check the bail or eyebolt including fasteners (screws/bolts) for any visible damage.

Replace any damaged components by original spare parts.

Run this procedure

Submersible Motor Pump Inspection

Safety Precautions

Wear safety clothing and a protective mask if required

Observe all legal regulations on the disposal of fluids posing a health hazard

Preparation

Close the shut-off element on the suction side

Switch off the drive and ensure it cannot be re-started unintentionally
