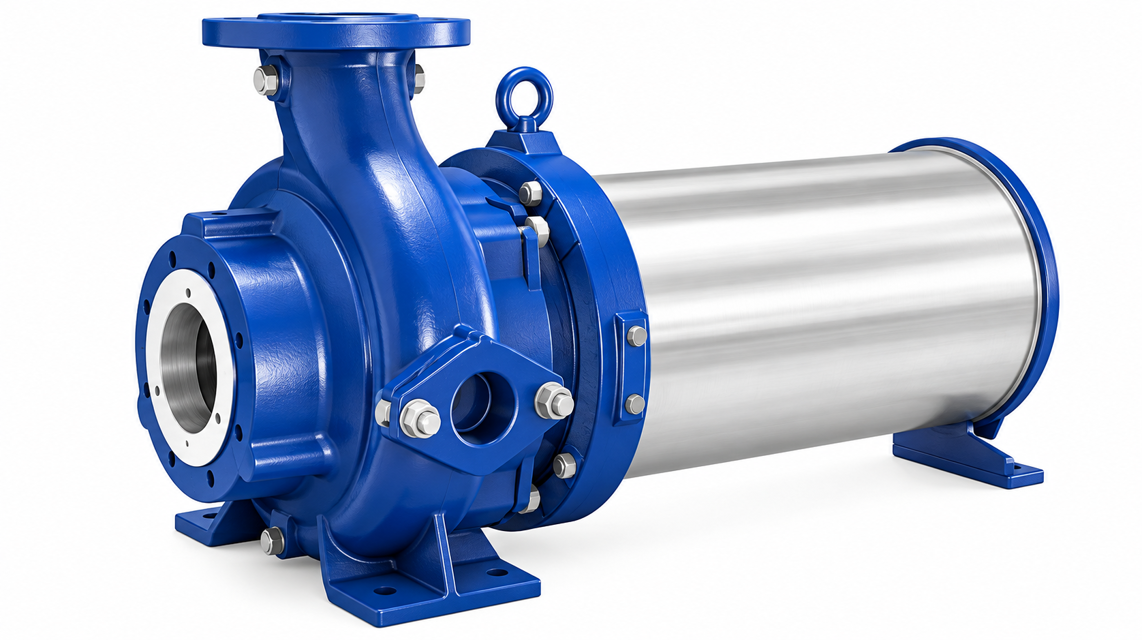

KSB SE & Co. KGaA Submersible Motor Pump KRT K 80-315

Create an account to install this asset package.

Maintenance Plans for KSB SE & Co. KGaA Submersible Motor Pump Model KRT K 80-315

Integrate maintenance plans directly into your work orders in MaintainX.

Submersible Motor Pump Cleaning

Safety Precautions

Wear safety clothing and a protective mask if required.

Observe all legal regulations on the disposal of fluids posing a health hazard.

Flushing and Cleaning

Has the pump been used for handling noxious, explosive, hot or other hazardous fluids?

Flush the pump if it has been used for handling hazardous fluids.

Flush and clean the pump before transporting it to the workshop.

Disposal and Documentation

Collect and properly dispose of the flushing fluid and any residues of the fluid handled.

Run this procedure

4000 Hourly / 1 Yearly Lifting Accessories Inspection

Check the bail or eyebolt including fasteners (screws/bolts) for any visible damage

Replace any damaged components by original spare parts

Consult KSB Service for demanding conditions

Confirm the pump set has been lifted out of the pump sump and cleaned (Applies to installation type K only)

Run this procedure

4000 Hourly / 1 Yearly Power Cables Inspection

Visual Inspection

Ensure the pump set has been lifted out of the pump sump and cleaned (Applies to installation type K only).

Inspect the power cables for visible damage.

Replace any damaged components with original spare parts.

Checking the Ground Conductor

Measure the resistance between the ground conductor and chassis ground.

Is the electrical resistance lower than 1 Ω?

Replace any damaged components with original spare parts.

Ensure the pump set is not switched on if the ground conductor is defective.

Run this procedure

4000 Hourly / 1 Yearly Lifting Chain and Rope Inspection

NOTE: In demanding conditions, reduce the maintenance interval accordingly. For a consultation or any queries please contact KSB Service.

The pump set has been lifted out of the pump sump and cleaned. (Applies to installation type K only.)

Inspection and Replacement

Inspect the lifting chain/rope as well as their fasteners (shackles) for any visible damage.

Replace any damaged components with original spare parts.

Assessment and Compliance

Assess the lifting chain / lifting rope / shackle in accordance with the locally applicable regulations for lifting tackle.

Observe the operating manual of the lifting accessories.

Run this procedure

4000 Hourly / 1 Yearly Insulation Resistance Inspection

Pre-Inspection Note

In demanding conditions (e.g. high mechanical and hydraulic loads) reduce the maintenance interval accordingly. For a consultation or any queries please contact KSB Service.

Ensure the pump set is disconnected in the control cabinet

Use an insulation resistance measuring device with a maximum measuring voltage of 500 V (maximum permissible voltage 1000 V)

Measure the winding to chassis ground

Connect all winding ends together

Record the insulation resistance of the winding to chassis ground

Is the insulation resistance of the winding to chassis ground lower than 1 MΩ?

Measure the winding temperature sensor to chassis ground

Run this procedure
