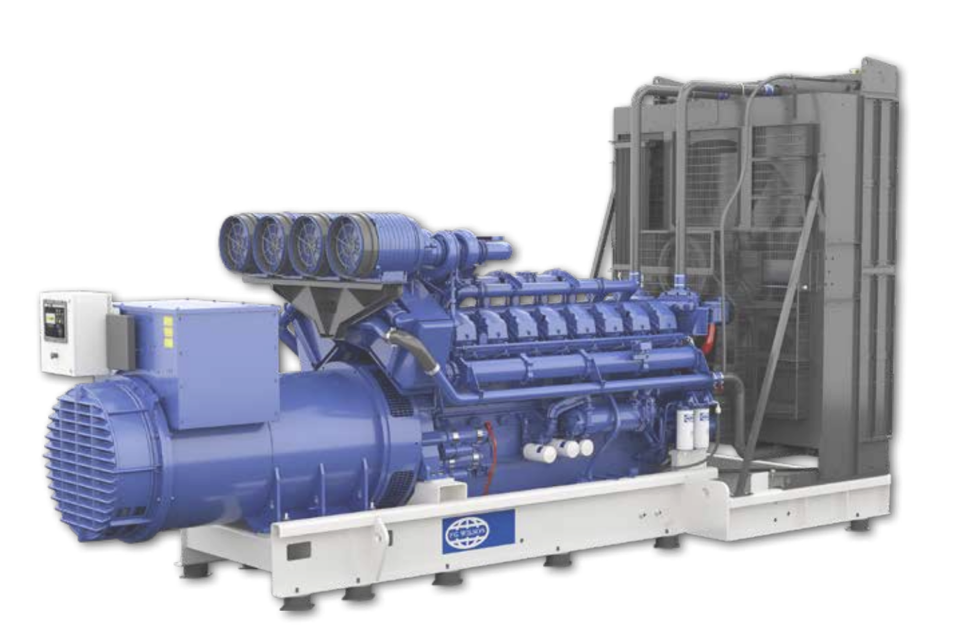

FG Wilson Generator Set P65-5

Ensure fuel supply type is identified

Remove T-handle and lid from the top of the unit

Screw T-handle into centre tube finger tight

Fill the assembly with clean fuel to just above the top of the element

Lubricate the lid gasket and T-handle O-ring with clean fuel

Replace the lid, seat the gasket correctly, and tighten the T-handle

Operate the priming switch for 2 minutes (if fitted)

Inspect the condition of the alternator winding

Inspect the cable connections between the alternator and the circuit breaker

Consult local Dealer for further guidance

Select the method used to drain the fuel tank

Drain the water and sediment from the fuel tank

Drain the outer bund area by hand pump through the rear access socket

Dispose of any removed fluid properly

Pre-Maintenance Safety and Preparation

Ensure the engine is stopped before any servicing or repair is performed

Prepare containers to collect Diesel Exhaust Fluid (DEF) during inspection, maintenance, testing, adjusting, and repair

Ensure the area around the DEF manifold is free from contamination before any servicing or repair is performed

Dispose of all fluids according to local regulations and mandates

Note the location of clamp (2) and ensure it is between the marked location (A)

Loosen clamp (2) and remove outer filter (3) from DEF tank header (1) and discard outer filter (3)

Perform a visual walk-around inspection of the generator set

Check for loose fastenings, worn belts, or loose connections

Ensure fan and exhaust guards are correctly positioned and securely fixed

Wipe clean all filler caps before servicing or topping up fluids

Is there any type of leak (coolant, lubricating oil, or fuel)?

Describe the leak and corrective actions taken

Remove accumulated grease and oil from the engine
