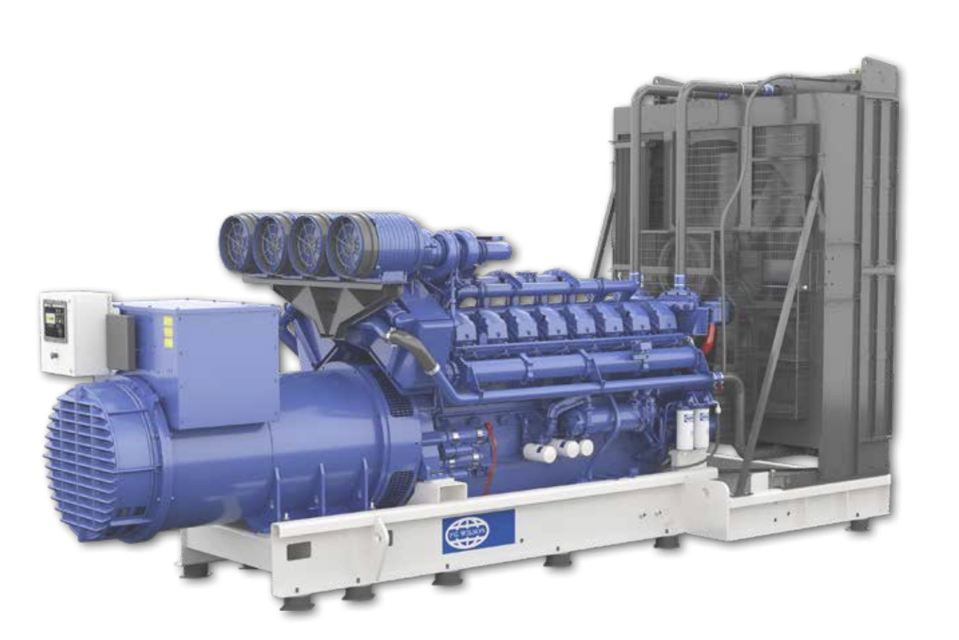

FG Wilson Generator Set P1000-1

Select the method used to drain the fuel tank

Drain the water and sediment from the fuel tank

Drain the outer bund area by hand pump through the rear access socket

Dispose of any removed fluid properly

Test the DEF quality in the tank with a refractometer

Does the DEF meet ISO 22241-1 requirements?

Is it necessary to drain the tank?

Drain the tank if necessary and refill with DEF that meets ISO 22241-1

Repeat all daily pre-start checks

Check all control system safety devices by electrically simulating faults

Tighten all exhaust connections

Tighten all electrical connections

Start the engine and observe the instrument panel to ensure that all gauges and meters are operating properly

Maintenance intervals for the engine may be more frequent than those shown — consult your local dealer for maintenance guidelines specific to your engine

These procedures should only be carried out by a qualified technician

Measure the electrolyte level above the plates/grids

Is the electrolyte level covering the plates/grids?

Is the electrolyte level below the plates/grids?

Add distilled water if necessary

Is the fluid level just touching the bottom of the filler tubes?

Ensure the generator set is stopped and there are no active or present shutdown conditions

Priming Procedure with Base Tank

Operate the priming switch for the standard pre-set 2 minute priming cycle

Did the engine start within 3 crank cycles?

Repeat the prime procedure if the engine did not start within 3 crank cycles

Priming Procedure with Remote Tank
