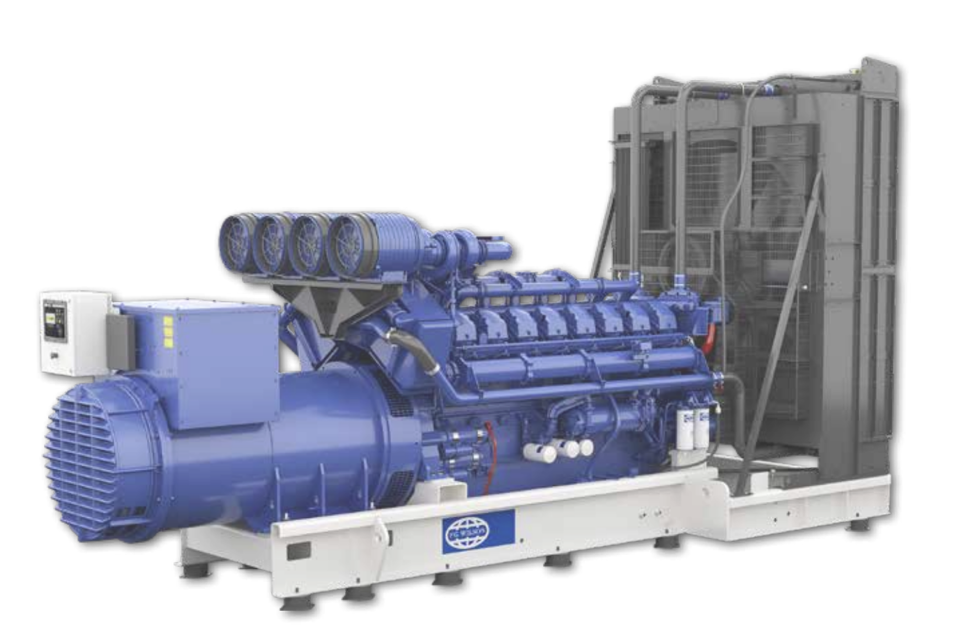

FG Wilson Generator Set P110-3

Inspect battery condition using a torch if necessary

Are there any severe dents or leaks on the battery?

Ensure all load is removed before disconnecting the battery

Disconnect the negative cable first

Remove the hold-down clamp or strap securing the battery base

Inspect the condition of the alternator winding

Inspect the cable connections between the alternator and the circuit breaker

Consult your local Dealer for further guidance

Ensure that the engine is stopped before any servicing or repair is performed

Ensure that the area around the cap on the Diesel Exhaust Fluid (DEF) tank is clean

Press the tabs to release the filter screen from DEF tank neck adapter

Remove the filter screen from DEF tank neck adapter

Allow engine to perform DEF purge for 2 minutes after stopping

Exhaust and DEF Tank Preparation

Cap the exhaust outlet of the aftertreatment

Fill the tank with DEF meeting ISO 22241-1 requirements

Reconnect all DEF lines and electrical connections

Ensure DEF filler cap is correctly installed

Perform a visual walk-around inspection before starting the generator set

Check for loose fastenings, worn belts, or loose connections

Ensure fan and exhaust guards are correctly positioned and securely fixed

Wipe clean all filler caps before servicing the engine or topping up fluids

Is there any type of leak (coolant, lubricating oil, or fuel)?

Describe the source and corrective action for any observed leaks

Remove accumulated grease and/or oil on the engine by steam cleaning or high-pressure water jet
