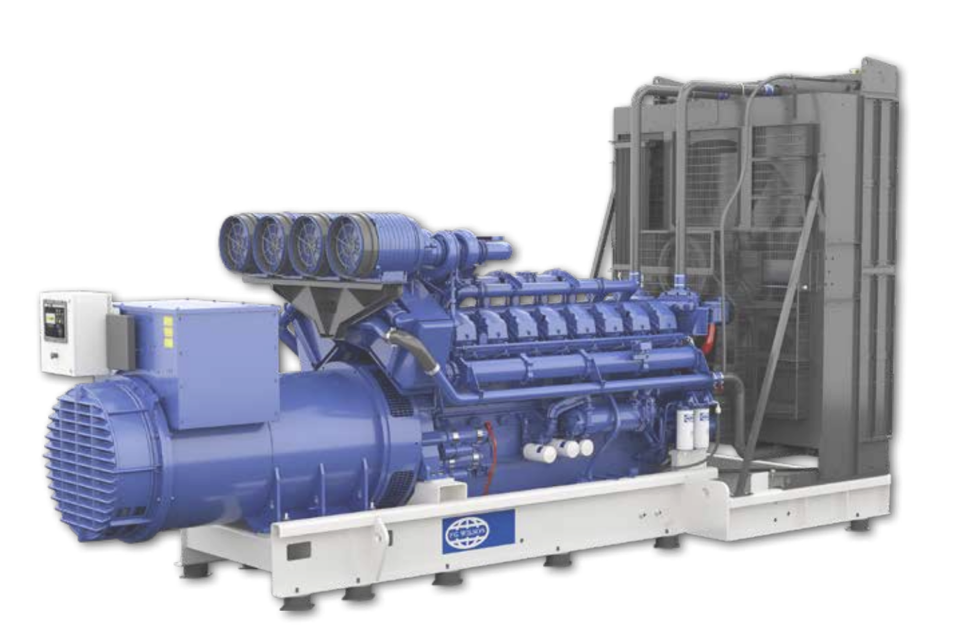

FG Wilson Generator Set P938-1

Ensure the area around the DEF tank cap is clean

Press the tabs to release the filter screen

Remove the filter screen from the DEF tank neck adapter

Inspect the condition of the alternator winding

Inspect the cable connections between the alternator and the circuit breaker

Consult your local Dealer for further guidance

Ensure fuel supply is from the correct source

With Fuel Supply from the Base Tank

Remove T-handle and lid from the top of the unit

Screw T-handle into centre tube finger tight

Fill the assembly with clean fuel to just above the top of the element

Lubricate the lid gasket and T-handle O-ring with clean fuel

Replace the lid, seat the gasket correctly, and tighten the T-handle

Operate the priming switch for 2 minutes

Check for loose fastenings, worn belts, or loose connections

Ensure fan and exhaust guards are correctly positioned and secure

Wipe clean all filler caps before servicing or topping up fluids

Check for any type of leak and clean away fluid

Remove accumulated grease and oil from the engine

Ensure coolant pipes are fitted correctly and secure

Select the method used to drain the fuel tank

Drain the water and sediment from the fuel tank

Drain the outer bund area by hand pump through the rear access socket

Dispose of any removed fluid properly
