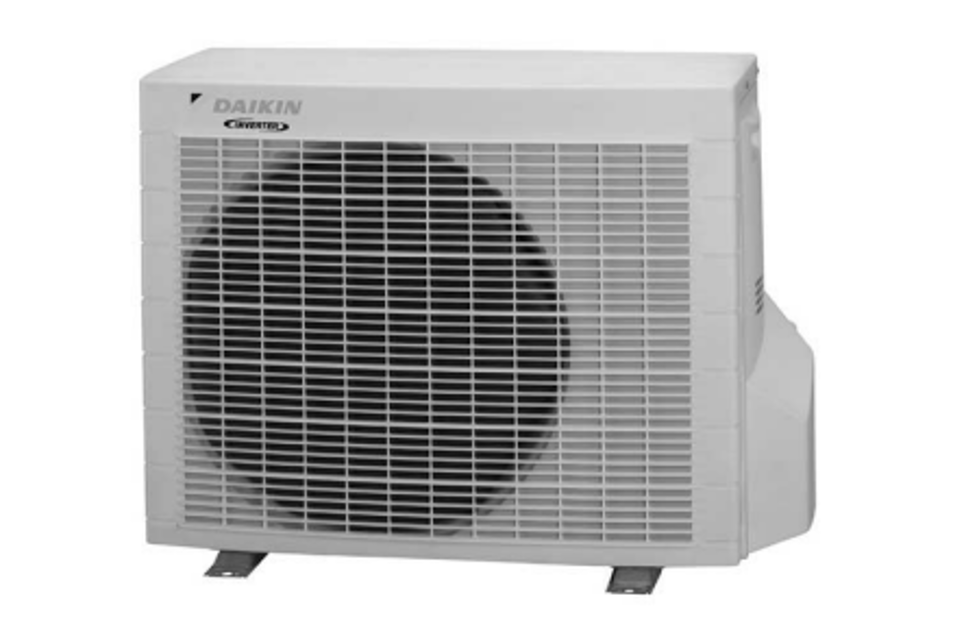

Daikin Outdoor Unit Cooling Only Air Conditioner RKS35BVMB

Operate the unit for several minutes

Shut down the operation using the circuit breaker

Exercise caution to prevent electric shock

Set the multi-tester to VOLTAGE RANGE

Wait 10 minutes after turning off all power supplies before starting disassembly.

Removal of Parts Around the Four Way Valve

Remove the terminal cover and lead wires of the compressor to prevent damage from gas brazing.

Remove the thermistor for the heat exchanger, ensuring it is fixed back in its original position during restoration.

Ventilate the area if refrigerant leaks during the work.

Remove the four way valve’s coil, ensuring the thermistor retainer is not lost.

Remove the motor valve coil, confirming the refrigerant circuit is completely empty.

Check that the base, stand, and other fittings are not decayed or corroded

Check that nothing blocks the air inlets and outlets

Check that the earth wire is not disconnected or broken

Is the drain coming smoothly out of the drain hose during COOL or DRY operation?

Describe any issues if no drain water is seen

Ensure all power supplies are turned off and wait 10 minutes before starting disassembly

Remove the two screws fixing the partition plate

Pull the partition plate upward to remove

Fit the hook into the bottom frame when restoring the partition plate

Remove the fixed screw to release the reactor

Warning: Wait 10 minutes after turning off all power supplies before disassembling work.

Remove the three screws for removing the right side plate

Lift the right side plate to disengage the hooks

Insert the three hooks for the restoration

Untie the string fixing the noise absorption pad for the body to the compressor

Pull out the noise absorption pad for the body

Pull out the top pad of the noise absorption (a)
