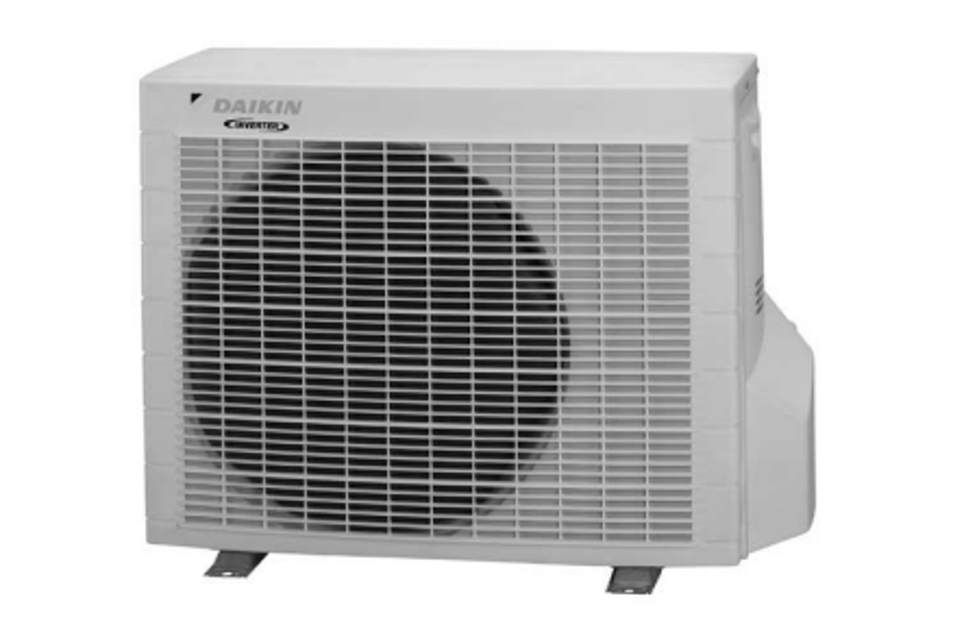

Daikin Outdoor Unit Cooling Only Air Conditioner ARK35BVMB

Attach a new filter element with the green side up

Is the air purifying filter being replaced every three months?

Warning: Wait 10 minutes after turning off all power supplies before disassembling work.

Undo the five hooks and remove the shelter

Remove the four screws fixing the PCB

Disconnect the two connectors of the reactor

Undo the eight hooks and disengage the PCB

Open the front grille (page 24)

Take off the air purifying filter and photocatalytic deodorizing filter

Set the air filter, air purifying filter, and photocatalytic deodorizing filter as they were

Close the front grille slowly and push the grille at the 3 points

Ensure all power supplies are turned off

Wait for 10 minutes after turning off power supplies

Fit the hook into the bottom frame when restoring the partition plate

Remove the fixed screw to release the reactor

Wait 10 minutes after turning off all power supplies before starting disassembly.

Removal of Parts Around the Four Way Valve

Remove the terminal cover and lead wires of the compressor.

Remove the thermistor for the heat exchanger.

Remove the four way valve’s coil.

Safety and Environmental Precautions

Ventilate the area if refrigerant leaks during the work.
