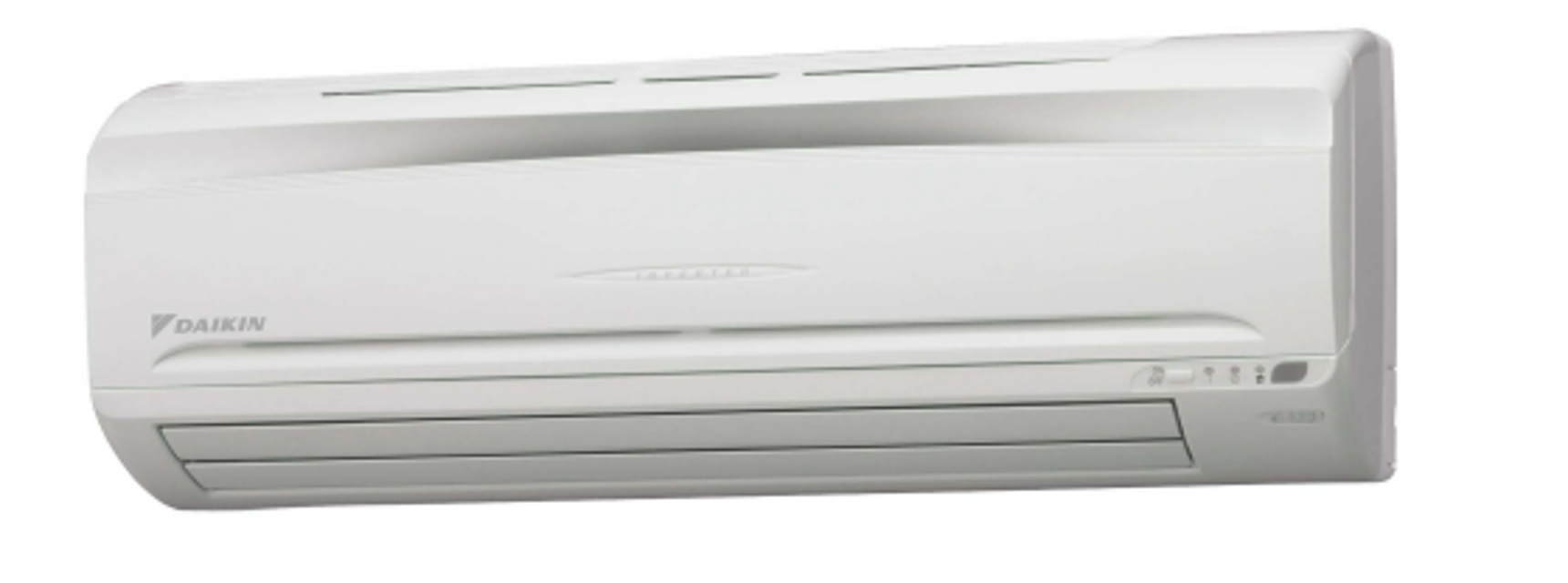

Daikin Indoor Unit Cooling Only Air Conditioner ATKS35BVMB

Stop the operation of the air conditioner

Indoor Unit, Outdoor Unit, and Remote Controller Cleaning

Wipe all units with a dry soft cloth

Ensure the following precautions are taken

Ensure voltage between power transistor terminals is approximately 0 volts

Disconnect the compressor harness connector from the outdoor unit PCB

Measure resistance between power transistor (+) and (-) and U, V, W terminals of the compressor connector using a multi-tester

Evaluate measurement results for pass/fail judgment

Hold the grille by the tabs on the two sides and lift it until it stops with a click.

Support the front grille with one hand, release the lock by sliding down the knob with the other hand.

Pull the front grille toward yourself with both hands to remove it.

Wipe the grille with a soft cloth soaked in water.

Use only neutral detergent for cleaning.

If washed with water, dry the grille with a cloth and then in the shade.

Open the front grille (page 24)

Take off the air purifying filter and photocatalytic deodorizing filter

Set the air filter, air purifying filter, and photocatalytic deodorizing filter as they were

Close the front grille slowly and push the grille at the 3 points

Warning: Wait 10 minutes after turning off all power supplies before disassembling work.

Remove three screws from the right side panel

Disengage hook on the right side panel

Loosen the hexagon head set screw on the fan rotor

Remove a screw on the left side panel
