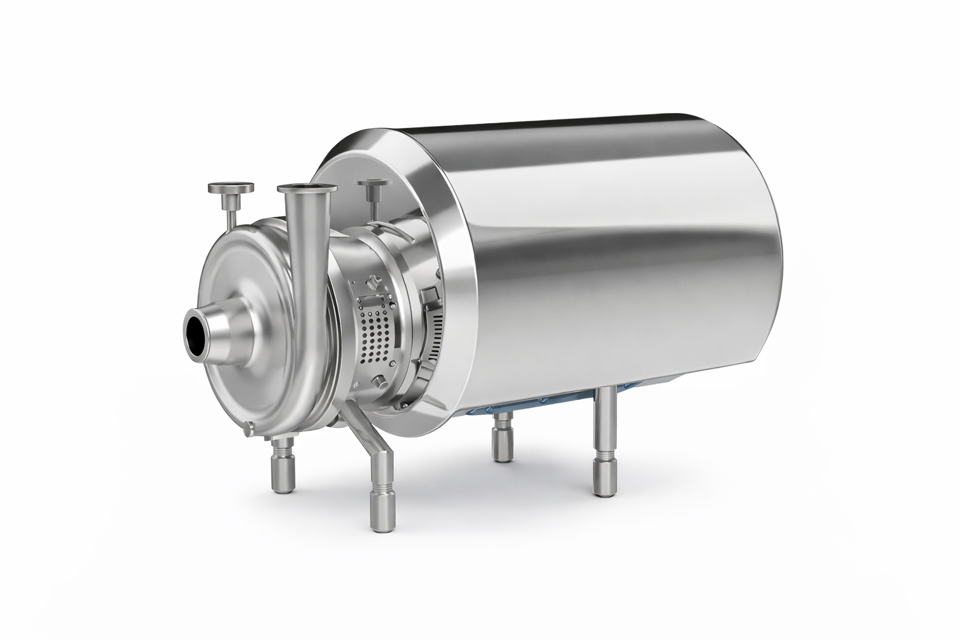

C.S.F. Inox Centrifugal Pump CS 65-260

Verify the pump is intended for food products and requires cleaning.

Select the appropriate cleaning method (CIP or manual disassembly).

Choose necessary detergents, operating temperatures, and concentrations based on the food product.

Check compatibility of chemical products and operating temperatures with pump components.

Prerinse with cold water (15-25°C) for 10-15 minutes.

Warm prerinse with water at 45-60°C for 10 minutes.

Rinse with alkaline solution at 70-80°C for 20-30 minutes.

Ensure washing liquids are compatible with the process liquid and the pump

Wear suitable personal protective equipment

Is the pump used for liquids that harden or crystallize?

Run the pump with washing fluids before taking it out of operation

Perform internal cleaning by running the pump with compatible washing fluids

Fill in the Declaration of Decontamination if sending the pump for maintenance/repair work at C.S.F. Inox

Verify pump model and motor size

Are the bearings shielded and do not require lubrication?

Bearing disassembly and cleaning

Top-up grease via grease nipple if necessary

Verify pump model and motor size

Is the pump operating under harsh conditions?

Bearing Disassembly and Cleaning

Enter the quantity of grease for C 2216 bearing type (in grams)

Enter the quantity of grease for 6216 A bearing type (in grams)

Is the pump generating the required discharge head rapidly?

Is the delivery gate valve opened to the specified working point?

Is the discharge head generated by the pump greater than required?

Is the discharge head generated by the pump lower than required?

Is the pump operating smoothly and without vibrations?

Is the suction liquid level sufficient for normal operation?
