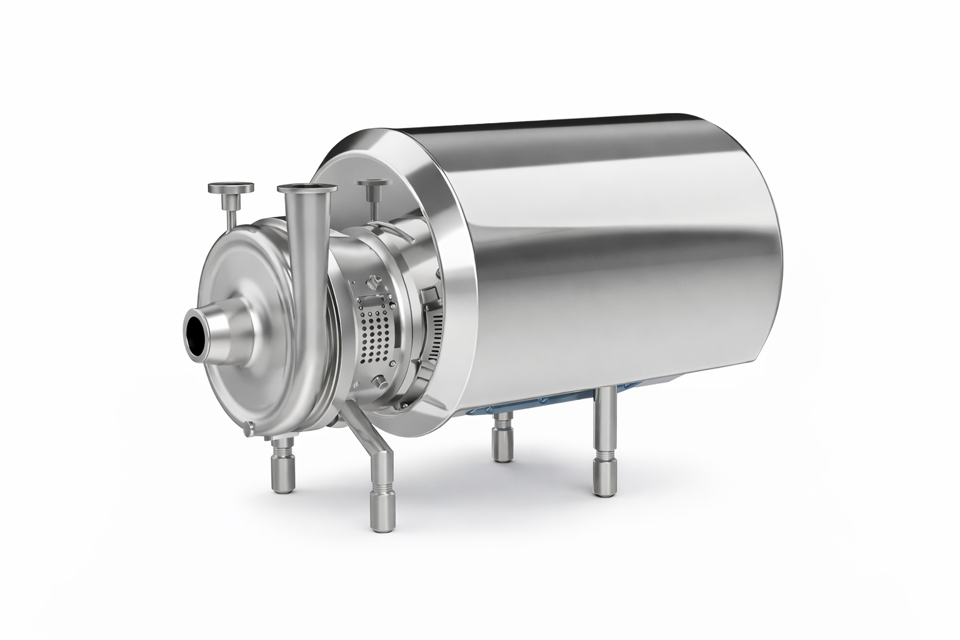

C.S.F. Inox Centrifugal Pump CS 50-260

Did the pump generate the required discharge head rapidly?

Repeat the priming operations if the required discharge head was not achieved.

Discharge Head and Capacity Check

Is the delivery gate valve opened more than necessary?

Throttle the discharge if the pump operates with a lower discharge head than required.

Is the discharge head generated by the pump greater than required?

Consider reducing the impeller diameter if the discharge head is greater than required.

Is the discharge head lower than required?

Ensure washing liquids are compatible with the process liquid and the pump

Use suitable personal protective equipment during cleaning operations

Has the pump been used for liquids that tend to harden or crystallize?

Run the pump with washing fluids compatible with the pumped fluid and the pump itself

Ensure the pump is washed before taking it out of operation

Check the durability of the seal

Ensure the pump is turned off and isolated from the power supply

Wear suitable personal protective equipment

Is the pump used for liquids that harden or crystallize?

Wash the pump before taking it out of operation if necessary

Clean the external parts of the pump and motor to remove dust and deposits

Check for any visible damage or wear on the pump surfaces

Verify pump model and motor size

Are the bearings shielded and do not require lubrication?

Bearing Disassembly and Cleaning

Is the grease applied correctly?

Ensure the pump is turned off and isolated from the power supply

Gather necessary tools and replacement bearings

Remove the pump casing to access the bearings

Extract the old bearings from the pump shaft

Install the new bearings onto the pump shaft
