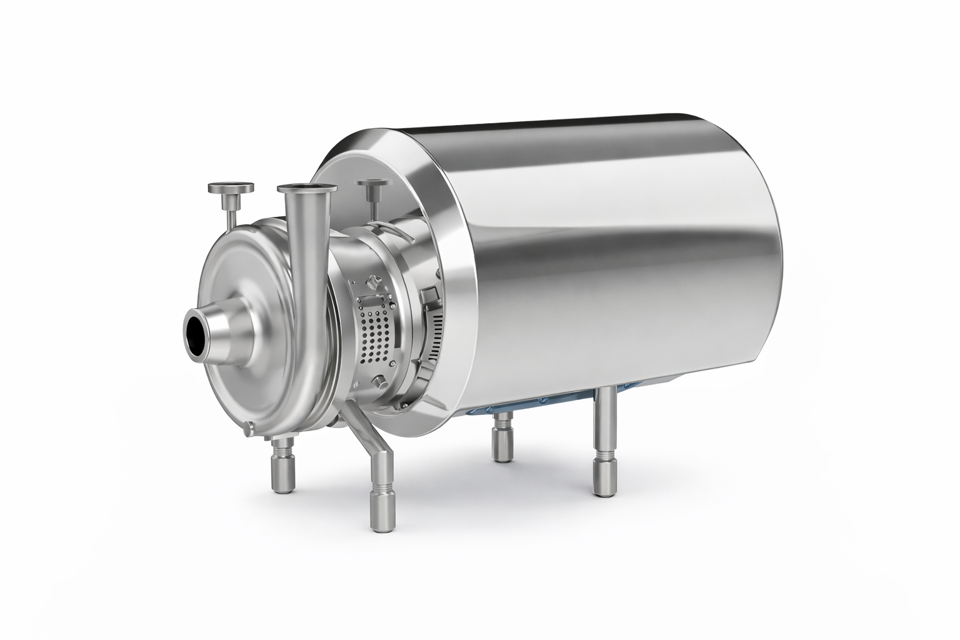

C.S.F. Inox Centrifugal Pump CS 40-145

Verify the pump is intended for food product handling and requires cleaning.

Select the appropriate cleaning method (CIP or manual disassembly).

Choose necessary detergents, operating temperatures, and concentrations based on the food product.

Check compatibility of chemical products and operating temperatures with pump components.

Prerinse with cold water (15-25°C) for 10-15 minutes.

Warm prerinse with water at 45-60°C for 10 minutes.

Rinse with alkaline solution at 70-80°C for 20-30 minutes.

Verify pump model and motor size

Are the bearings shielded and do not require lubrication?

Bearing Disassembly and Cleaning

Measure and apply the correct amount of grease (20 gr.)

Fill the crowns to half their volume with grease

Clean the dismantled nut before assembling (internal threads)

Select cleaning method for the nut

Select sterilization method for the cap nut

Ensure not to use chlorine solutions to avoid corrosion of stainless steel

Ensure washing liquids are compatible with the process liquid and the pump

Wear suitable personal protective equipment

Is the pump used for liquids that harden or crystallize?

Run the pump with washing fluids to clean internal parts

Ensure the pump is washed before taking it out of operation

Is the pump ready for disassembly?

Did the pump generate the required discharge head rapidly?

Repeat the priming operations if the required discharge head was not achieved.

Discharge Head and Capacity Check

Is the delivery gate valve opened more than necessary?

Throttle the discharge if the valve is opened more than necessary to achieve required head and capacity.

Is the discharge head greater than required?

Consider reducing the impeller diameter if the discharge head is greater than required.

Is the discharge head lower than required?
