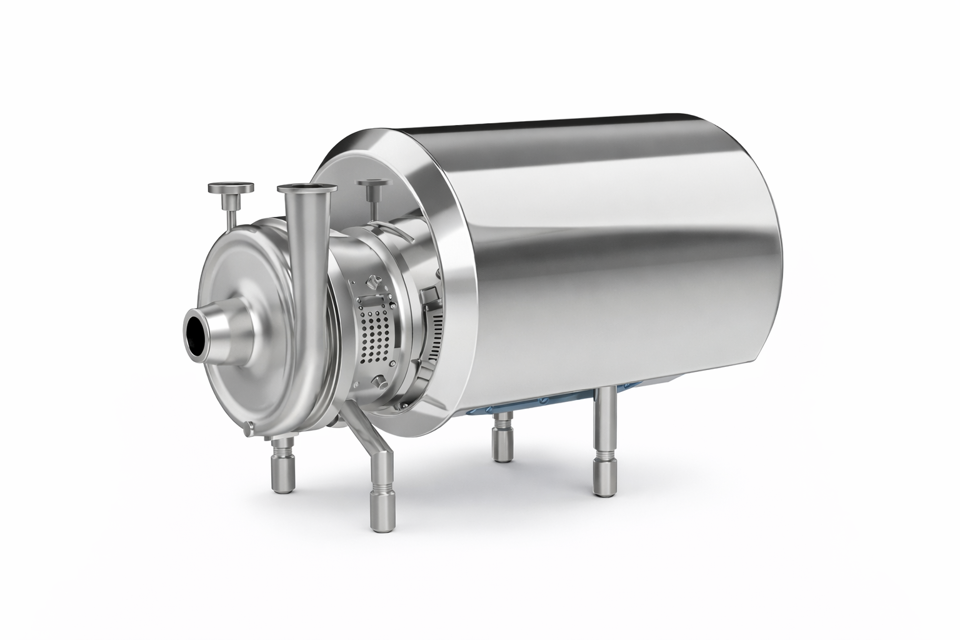

C.S.F. Inox Centrifugal Pump CS 32-260

Verify pump model and motor size

Are the bearings shielded and do not require lubrication?

Bearing disassembly and cleaning

Top-up grease via grease nipple if necessary

Ensure the pump is turned off and disconnected from power source

Wear suitable personal protective equipment

Is the pump used for liquids that harden or crystallize?

Ensure the pump is washed before taking it out of operation if used with hardening liquids

Clean the external parts of the pump and motor to remove dust and deposits

Are the washing liquids compatible with the process liquid and the pump?

Ensure the pump is not in operation

Wear suitable personal protective equipment

Is the washing fluid compatible with the pumped fluid and the pump?

Run the pump with washing fluids to clean internal parts

Was the pump cleaned before taking it out of operation?

Check the durability of the seal and the pump

Clean the dismantled nut before assembling (internal threads)

Select the cleaning method for the nut

Select the sterilization method for the cap nut

Ensure not to use chlorine solutions to avoid corrosion of stainless steel

Did the pump generate the required discharge head rapidly?

Repeat the priming operations if the required discharge head was not achieved.

Discharge Head and Capacity Check

Is the delivery gate valve opened more than necessary?

Throttle the discharge if the valve is opened more than necessary.

Is the discharge head generated by the pump greater than required?

Consider reducing the impeller diameter if the discharge head is greater than required.

Is the discharge head lower than required?
