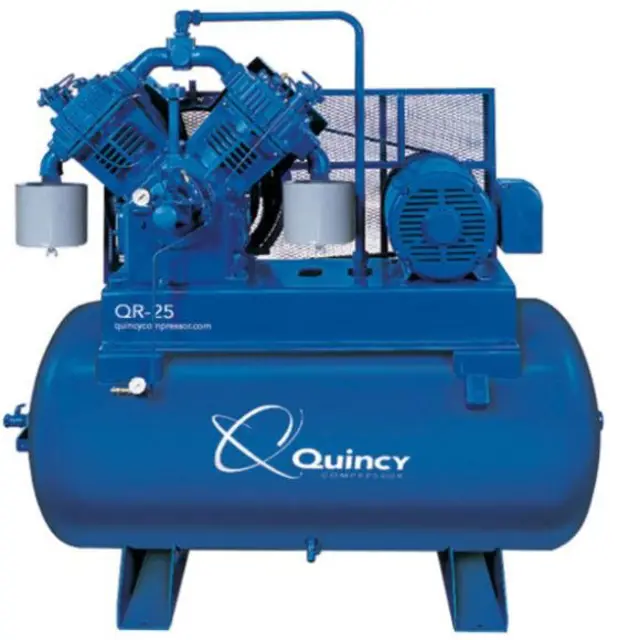

Quincy Compressor 4125

Manually operate the pressure relief valves to ensure they are working

Clean the cooling surfaces of the intercooler

Clean the cooling surfaces of the compressor

Check the compressor for air leaks

Check the compressed air distribution system for leaks

Measure Span Length and Deflection

Measure the span length of the drive (in inches)

Calculate the required deflection (in inches) by multiplying the span length by 0.016

Measure and Adjust Belt Tension

Lay a straightedge across the top outer surface of the drive belt from pulley to sheave

Apply pressure with a belt tension gauge and record the deflection force reading

Is the deflection force reading within the minimum and maximum values?

Adjust the belt(s) if the deflection force reading is not within the specified range

For new belts, tension to the maximum value plus 33%

Inspect compressor equipment for damage during shipment

Was any damage found during inspection?

Demand an inspection from the carrier if damage is found

Ask the carrier how to file a claim for shipping damages

Refer to SECTION 3, Freight Damage for complete details

Examine every carton and crate upon receipt

Ensure the following are in place before starting the compressor

Has the compressor been operated for 100 hours or 1 month?

Replace break-in lubricant with QuinCip lubricant

Consult Quincy Compressor factory for lubricant recommendations if not using QuinCip

Verify the following after oil change

Is the lubricant pour point at least 15°F lower than the minimum expected ambient temperature?

Drain liquid from the air receiver and moisture trap

Turn on cooling water (watercooled units)

Jog the starter button and check compressor rotation

Describe the procedure for starting a continuous run unit

Start compressor per factory instructions
