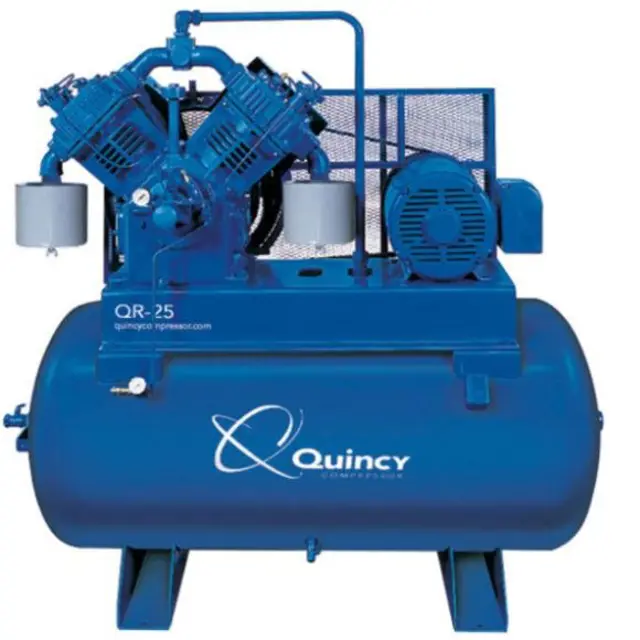

Quincy Compressor 350

Drain liquid from the air receiver and moisture trap

Turn on cooling water for water-cooled units

Jog the starter button and check compressor rotation

Adjust pilot valve for continuous run units if applicable

Start compressor per factory instructions

Change oil if 1000 hours or 6 months have passed, whichever occurs first

Was the oil changed more frequently due to harsher conditions?

Inspect compressor valves for leakage

Inspect compressor valves for carbon build-up

Crankcase and Sump Strainer Cleaning

Clean oil sump strainer screen inside the crankcase with safety solvent

Has the compressor operated for 100 hours or 1 month?

Replace break-in lubricant with QuinCip lubricant

Consult Quincy Compressor factory for lubricant recommendations if not using QuinCip

Inspect compressor equipment for damage during shipment

Was any damage found on the compressor equipment?

Demand an inspection from the carrier if damage is found

Ask the carrier how to file a claim for shipping damages

Refer to SECTION 3, Freight Damage for complete details

Examine every carton and crate upon receipt

Disconnect & lockout the compressor from the power source (electric models) or disconnect the spark plug wire from the spark plug (gas engine models).

Is the compressor stored in a heated area if subjected to freezing temperatures?

Enter the current air pressure in the tank (PSIG).

Is the air pressure in the tank 30 PSIG or less?

Open the drain valve and allow the moisture and air mixture to drain from the tank.

Close the drain valve once the moisture has been completely drained.
