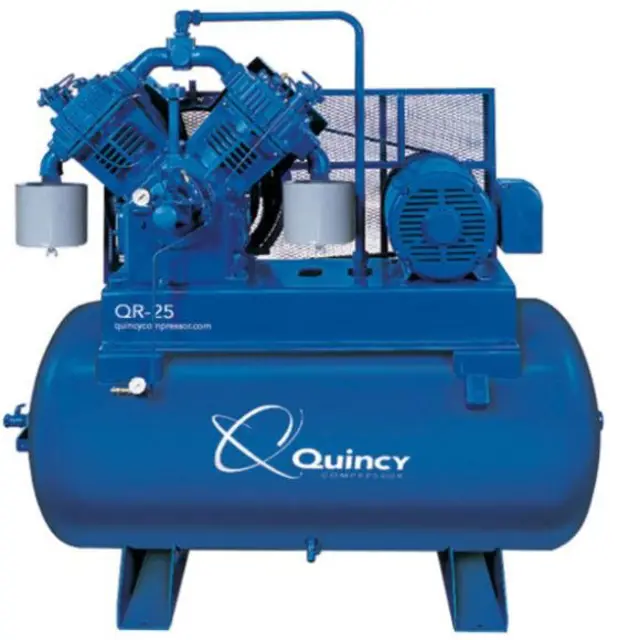

Quincy Compressor W5120

Drain liquid from the air receiver and moisture trap

Turn on cooling water for water-cooled units

Jog the starter button and check compressor rotation

Adjust pilot valve for continuous run units if applicable

Start compressor per factory instructions

Ensure all necessary parts and tools are available

Is the lubricant level between the high and low marks on the dipstick?

Has the compressor been operated for 100 hours or 1 month?

Replace the break-in lubricant with QuinCip lubricant

Consult Quincy Compressor factory for lubricant recommendations if not using QuinCip

Check and maintain oil level between high and low level marks on bayonet gauge

Is the oil level within the acceptable range?

Drain drop legs and traps in air distribution system

Perform an overall visual inspection of the compressor

Ensure safety guards are in place

Inspect compressor equipment for damage during shipment

Was any damage found on the compressor equipment?

Demand an inspection from the carrier if damage is found

Ask the carrier how to file a claim for shipping damages

Refer to SECTION 3, Freight Damage for complete details

Examine every carton and crate upon receipt

Measure the span length of the drive (in inches)

Calculate the required deflection (in inches)

Lay a straightedge across the top outer surface of the drive belt from pulley to sheave

Apply pressure with a belt tension gauge and record the deflection force reading

Is the deflection force reading within the minimum and maximum values?

Adjust the belt(s) if the deflection force reading is not within the specified range

Tension new belts to the maximum value plus 33% (multiply by 1.33)
