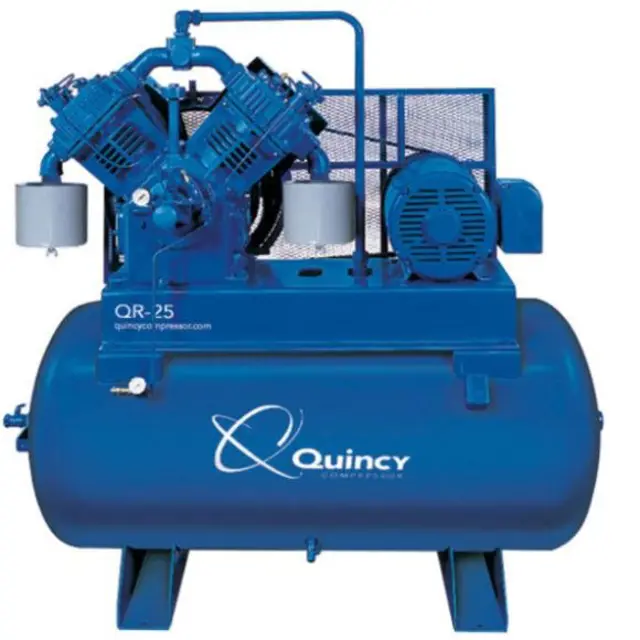

Quincy Compressor 310

Change oil if 1000 hours or 6 months have passed, whichever occurs first.

Inspect compressor valves for leakage.

Inspect compressor valves for carbon build-up.

Crankcase and Sump Strainer Cleaning

Clean the oil sump strainer screen inside the crankcase with a safety solvent.

Is there excessive sludge build-up inside the crankcase?

Inspect compressor equipment for damage during shipment

Was any damage found on the compressor equipment?

Demand an inspection from the carrier if damage is found

Ask the carrier how to file a claim for shipping damages

Refer to SECTION 3, Freight Damage for complete details

Examine every carton and crate upon receipt

Disconnect & lockout the compressor from the power source (electric models) or disconnect the spark plug wire from the spark plug (gas engine models).

Is the compressor stored in a heated area if subjected to freezing temperatures?

Enter the current air pressure in the tank (PSIG).

Is the air pressure in the tank 30 PSIG or less?

Open the drain valve and allow the moisture and air mixture to drain from the tank.

Close the drain valve once the moisture has been completely drained.

Ensure the compressor is installed in a clean, well-lighted, and adequately ventilated area

Ensure sufficient space is provided around the compressor for inspection, cleaning, and maintenance

Record the oil level on the bayonet gauge

Is the oil level between the high and low marks?

Is the oil discolored or contaminated?

Drain and replace oil if contaminated

Drain liquid from the air receiver and moisture trap

Turn on cooling water for water-cooled units

Jog the starter button and check compressor rotation

Prepare continuous run units for starting by adjusting the pilot valve

Start compressor per factory instructions
