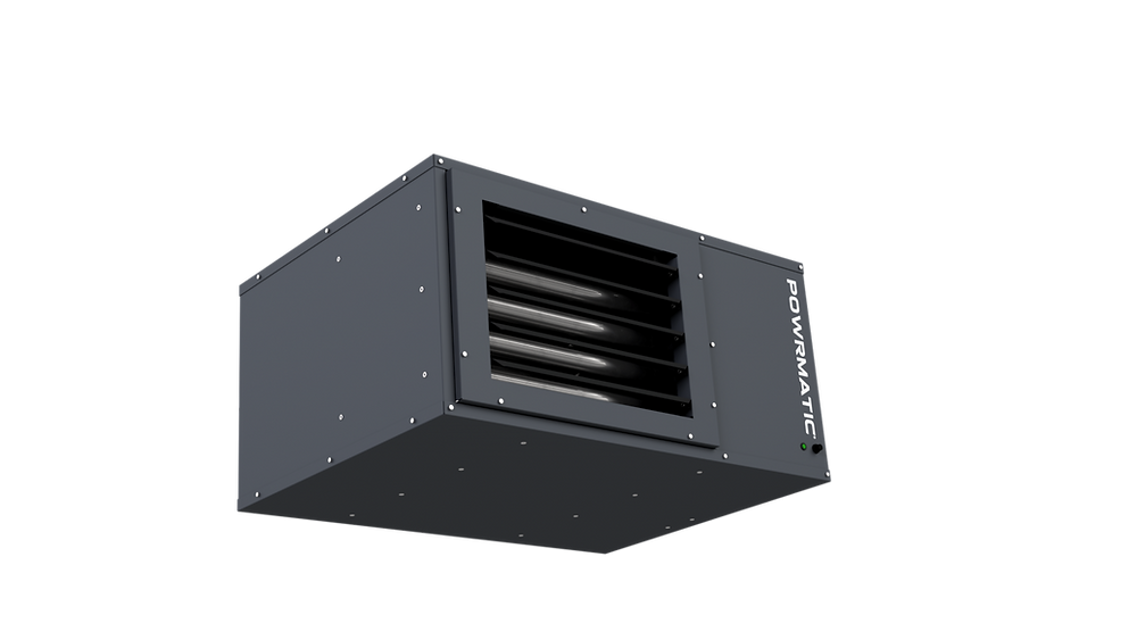

Powrmatic Heater LX140

Need answers fast?
Explore the manual using AI.

Powrmatic Heater LX140
Powrmatic Heater LX140

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Powrmatic Heater LX140

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Powrmatic Heater LX140

Powrmatic Heater LX140

Create an account to install this asset package.

Maintenance Plans for Powrmatic Heater Model LX140

Integrate maintenance plans directly into your work orders in MaintainX.

Burners Replacement

Check mark

Remove the burner assembly as described in Section 2.7.2

Check mark

Remove the end plates of the burner assembly and the central burner support plate

Check mark

Exchange burners as required

Check mark

Reassemble components in reverse order

Check mark

Re-commission the appliance as described in Section 2.6

Run this procedureArrow right

Main Burner Assembly Maintenance

Check mark

Ensure the gas service valve is turned OFF

Check mark

Unscrew the union nut situated immediately downstream of the gas service valve

Check mark

Disconnect the spark and rectification leads from the control box

Check mark

Remove the electrical plug connections from the top of the gas control valve assembly

Check mark

Remove the burner heat shield

Check mark

Release the inlet connection flange from the gas valve

Check mark

Remove the manifold if required

Check mark

Remove the manifold by removing the four screws securing it to the burner assembly

Check mark

Remove the burner assembly

Run this procedureArrow right

Thermistor Replacement

Check mark

Disconnection Steps

Check mark

Disconnect the thermistor from the exhaust fan outlet

Check mark

Disconnect the two pin plug and socket connected to the end of the red/white cable situated behind the electrical chassis plate

Check mark

Replacement and Reassembly

Check mark

Fit replacements as appropriate

Check mark

Reassemble in reverse order

Check mark

Post Replacement Check

Check mark

Is the thermistor functioning correctly after replacement?

Check mark

Describe any issues encountered during the replacement process

Run this procedureArrow right

Exhaust Fan Replacement

Check mark

Disassembly

Check mark

Remove the four screws securing the flue outlet socket.

Check mark

Disconnect the fan electrical connections from the main terminal strip.

Check mark

Remove the screws securing the fan mounting box to the exhaust header plate.

Check mark

Remove fan assembly.

Check mark

Preparation for Replacement

Check mark

Is it necessary to transfer the fan mounting box to the replacement fan?

Check mark

Installation

Check mark

Fit replacement exhaust fan using new gaskets and silicon sealant as necessary.

Run this procedureArrow right

Limit Thermostat Replacement

Check mark

Ensure thermostats are set correctly before fitment

Check mark

Limit Thermostat settings

Check mark

Remove the screws securing the thermostat phial mounting plate to the inner bulkhead

Check mark

Withdraw assembly and unclip the phial

Check mark

Remove the electrical connections from the limit thermostat

Check mark

Remove the securing nut and remove thermostat from the front panel

Check mark

Fit replacement thermostat in reverse order

Check mark

For LX35 & 90 - 140 units, remove the two small cover plates and replace the second limit stat as above

Run this procedureArrow right

Parts for Powrmatic Heater LX140

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Gas Valve VR425PB

141378715M

Ignition Electrode

142423004

Rectification (Flame Sensor) Probe

142423003

Burner

142400241

Limit Stats

142403609

Gas Valve VR425PB

141378715M

Ignition Electrode

142423004

Rectification (Flame Sensor) Probe

142423003

Burner

142400241

Limit Stats

142403609

Gas Valve VR425PB

141378715M

Ignition Electrode

142423004

Rectification (Flame Sensor) Probe

142423003

Burner

142400241

Limit Stats

142403609
