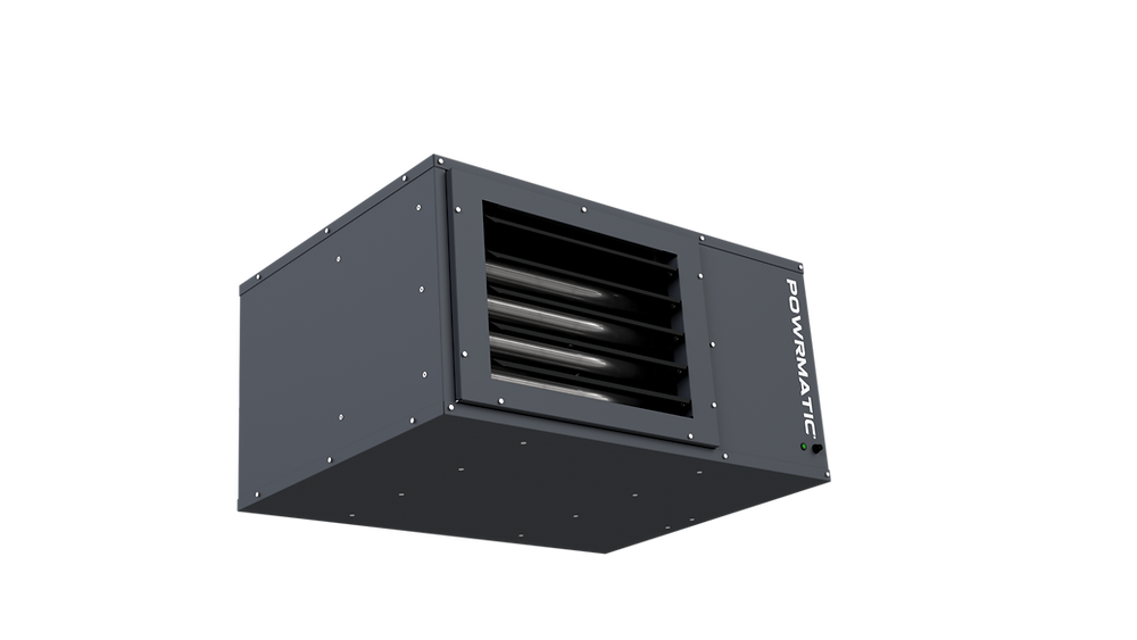

Powrmatic Heater LX60

Need answers fast?
Explore the manual using AI.

Powrmatic Heater LX60
Powrmatic Heater LX60

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Powrmatic Heater LX60

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Powrmatic Heater LX60

Powrmatic Heater LX60

Create an account to install this asset package.

Maintenance Plans for Powrmatic Heater Model LX60

Integrate maintenance plans directly into your work orders in MaintainX.

Limit Thermostat Replacement

Check mark

Pre-Replacement Checks

Check mark

Ensure thermostats are set correctly before fitment

Check mark

Thermostat Removal

Check mark

Remove the screws securing the thermostat phial mounting plate to the inner bulkhead and withdraw assembly

Check mark

Unclip the phial

Check mark

Remove the electrical connections from the limit thermostat

Check mark

Remove the securing nut and remove thermostat from the front panel

Check mark

Thermostat Replacement

Check mark

Fit replacement thermostat in reverse order

Run this procedureArrow right

Sequence Control Box Replacement

Check mark

Preparation

Check mark

Unplug all the electrical connections

Check mark

Control Box Removal

Check mark

Remove the two screws that secure the control box

Check mark

Replacement Installation

Check mark

Fit replacement in reverse order

Check mark

Post Replacement Check

Check mark

Verify the following connections are secure

Check mark

Is the control box functioning correctly after replacement?

Run this procedureArrow right

Main Burner Assembly Maintenance

Check mark

Preparation

Check mark

Ensure that the gas service valve is turned OFF

Check mark

Unscrew the union nut situated immediately downstream of the gas service valve

Check mark

Disconnection

Check mark

Disconnect the spark and rectification leads from the control box

Check mark

Remove the electrical plug connections from the top of the gas control valve assembly

Check mark

Component Removal

Check mark

Remove the burner heat shield screws

Check mark

Release the inlet connection flange from the gas valve

Run this procedureArrow right

Exhaust Fan Replacement

Check mark

Disassembly

Check mark

Remove the four screws securing the flue outlet socket

Check mark

Disconnect the fan electrical connections from the main terminal strip

Check mark

Remove the screws securing the fan mounting box to the exhaust header plate

Check mark

Remove fan assembly

Check mark

Preparation for Replacement

Check mark

Is it necessary to transfer the fan mounting box to the replacement fan?

Check mark

Installation

Check mark

Fit replacement exhaust fan using new gaskets and silicon sealant as necessary

Run this procedureArrow right

Electrode Assemblies Replacement

Check mark

Disconnect the electrode leads from the control box

Check mark

Remove the screw securing the electrode assembly to the burner assembly side plate

Check mark

Withdraw the electrode assembly

Check mark

Fit replacement electrode assembly

Check mark

Reassemble in reverse order

Check mark

Check the spark gap

Check mark

Is the spark gap 2.5mm?

Check mark

Check the rectification electrode position

Check mark

Is the rectification electrode 10 - 12mm forward of the burner?

Run this procedureArrow right

Parts for Powrmatic Heater LX60

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Gas Valve VR4605PB

145035204M

Ignition Electrode

142423010

Rectification (Flame Sensor) Probe

142423003

Burner

142400240

Limit Stats

142403609

Gas Valve VR4605PB

145035204M

Ignition Electrode

142423010

Rectification (Flame Sensor) Probe

142423003

Burner

142400240

Limit Stats

142403609

Gas Valve VR4605PB

145035204M

Ignition Electrode

142423010

Rectification (Flame Sensor) Probe

142423003

Burner

142400240

Limit Stats

142403609
