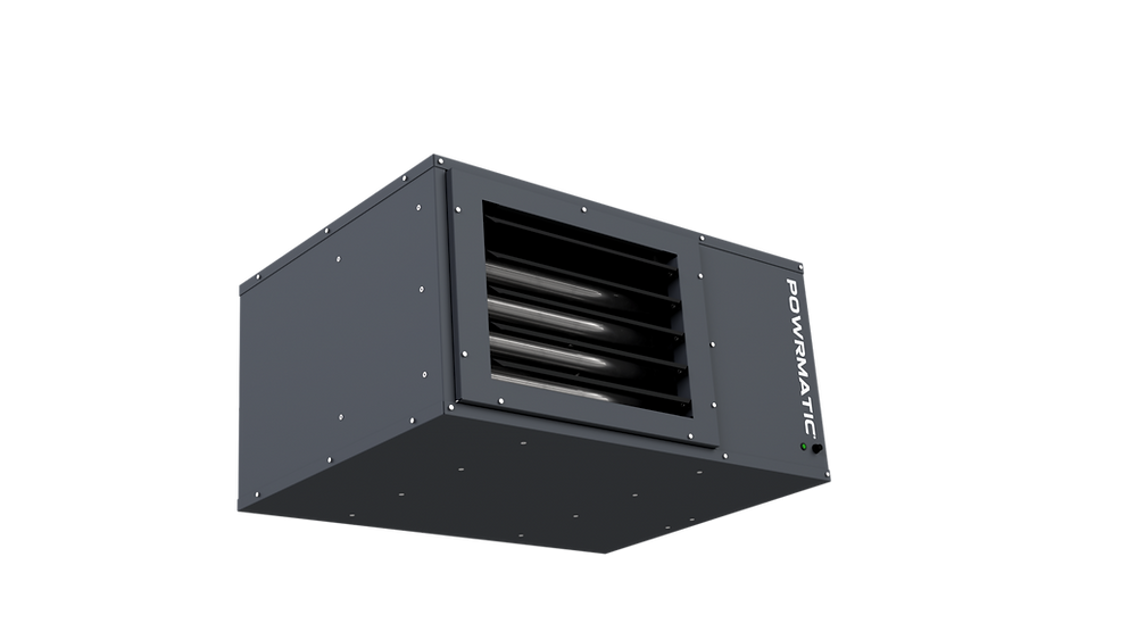

Powrmatic Heater LX40

Need answers fast?
Explore the manual using AI.

Powrmatic Heater LX40
Powrmatic Heater LX40

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Powrmatic Heater LX40

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Powrmatic Heater LX40

Powrmatic Heater LX40

Create an account to install this asset package.

Maintenance Plans for Powrmatic Heater Model LX40

Integrate maintenance plans directly into your work orders in MaintainX.

Main Burner Assembly Maintenance

Check mark

Preparation

Check mark

Ensure that the gas service valve is turned OFF

Check mark

Unscrew the union nut situated immediately downstream of the gas service valve

Check mark

Disconnection

Check mark

Disconnect the spark and rectification leads from the control box

Check mark

Remove the electrical plug connections from the top of the gas control valve assembly

Check mark

Component Removal

Check mark

Remove the burner heat shield screws

Check mark

Release the inlet connection flange screws

Run this procedureArrow right

Heat Exchanger Maintenance

Check mark

Burner Tube Inspection

Check mark

Check that the primary sections of the burner tubes are clean and free from debris.

Check mark

Remove the exhaust collector box to expose the rear sections of the burner tubes.

Check mark

Carefully remove the swirlers and check for any deterioration.

Check mark

Check the integrity of the burner tubes and clean if necessary.

Check mark

Burner Tube Integrity Verification

Check mark

Visually inspect the integrity of the burner tubes externally.

Check mark

Check the flue gas composition with a gas analyser if visual inspection is not possible.

Check mark

Post Maintenance Verification

Run this procedureArrow right

Electrode Assemblies Replacement

Check mark

Disconnection and Removal

Check mark

Disconnect the electrode leads from the control box

Check mark

Remove the screw securing the electrode assembly to the burner assembly side plate

Check mark

Withdraw the electrode assembly

Check mark

Replacement and Reassembly

Check mark

Fit the replacement electrode assembly

Check mark

Reassemble in reverse order

Check mark

Verification

Check mark

Check the spark gap is 2.5mm

Run this procedureArrow right

Thermistor Replacement

Check mark

Disconnection Steps

Check mark

Disconnect the thermistor from the exhaust fan outlet

Check mark

Disconnect the two pin plug and socket connected to the end of the red/white cable situated behind the electrical chassis plate

Check mark

Replacement and Reassembly

Check mark

Fit replacements as appropriate

Check mark

Reassemble in reverse order

Check mark

Post Replacement Check

Check mark

Is the thermistor functioning correctly after replacement?

Check mark

Describe any issues encountered during the replacement process

Run this procedureArrow right

Run/Fault Indicator Lamp Replacement

Check mark

Preparation

Check mark

Ensure the machine is powered off

Check mark

Verify that you have the correct replacement lamp

Check mark

Disassembly

Check mark

Disconnect the electrical plug from the R2R board

Check mark

Squeeze and pop out the indicator bezel from the front panel

Check mark

Replacement and Reassembly

Check mark

Fit the replacement lamp into the bezel

Check mark

Reassemble the bezel into the front panel

Run this procedureArrow right

Parts for Powrmatic Heater LX40

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Gas Valve SIGMA 845

145035208M-SIT

Ignition Electrode

142423010

Rectification (Flame Sensor) Probe

142423003

Burner

142400240

Limit Stats

142403609

Gas Valve SIGMA 845

145035208M-SIT

Ignition Electrode

142423010

Rectification (Flame Sensor) Probe

142423003

Burner

142400240

Limit Stats

142403609

Gas Valve SIGMA 845

145035208M-SIT

Ignition Electrode

142423010

Rectification (Flame Sensor) Probe

142423003

Burner

142400240

Limit Stats

142403609
