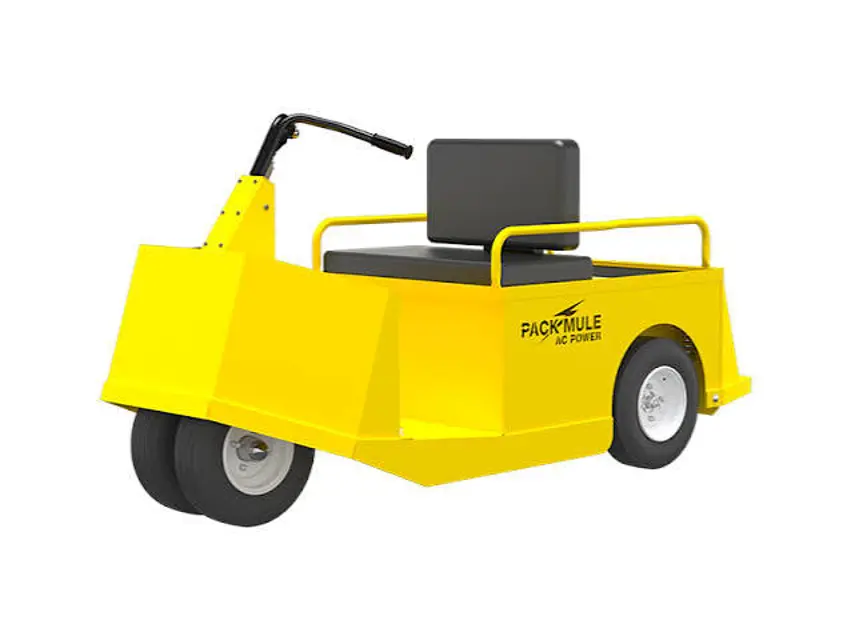

Pack Mule Electric Vehicle PC-640 NXG

Place battery into service and complete a full discharge and charge cycle.

Add approved water if needed after the first cycle is completed.

Ensure battery is not discharged beyond 80%.

Check if the specific gravity is above 1.150.

Storage and Shipment Precautions

Check electrolyte levels are above the separator and 1/8” (3.175mm) below the vent well.

Remove power by disconnecting the battery

Discharge the capacitors in the controller

Remove any dirt or corrosion from the connector areas

Ensure the controller is not subjected to pressured water flow

Ensure all connections are tight

Ensure the area is well-ventilated

Wear protective gloves and goggles

Measure 1⁄4 cup (60 mL) of sodium bicarbonate

Measure 11⁄2 gallons (6 L) of water

Mix sodium bicarbonate with water to create the cleaning solution

Apply the cleaning solution to the top and sides of the batteries

Enter the tire pressure for LRB tires

Is the tire pressure for LRB tires at 60 psi?

Enter the tire pressure for LRC tires

Is the tire pressure for LRC tires at 90 psi?

Position the jack in the proper position (Figure 12)

Loosen the lug nuts on the wheel to be changed
