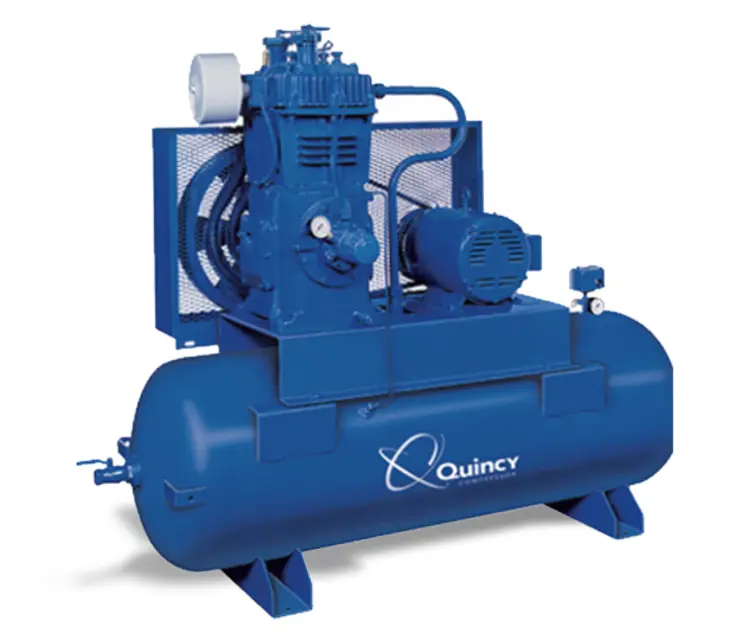

Quincy Compressor QC00703D1A

Measure the span length of the drive (in inches)

Calculate the required deflection (in inches) by multiplying the span length by 0.016

Lay a straightedge across the top outer surface of the drive belt from pulley to pulley

Apply pressure with a belt tension gauge and record the deflection force reading

Is the deflection force reading within the specified range?

Adjust the belt tension if the deflection force reading is not within the specified range

Recheck the tension of the new belts several times in the first 50 hours of operation

Disconnect & lockout the compressor from the power source (electric models) or disconnect the spark plug wire from the spark plug (gas engine models).

Is the compressor stored in a heated area if subjected to freezing temperatures?

Reduce the air pressure in the tank to 30 PSIG by pulling the pressure relief valve ring.

Slowly open the drain valve to allow the moisture and air mixture to drain from the tank.

Close the drain valve once the moisture has been completely drained.

Ensure the compressor is turned off and cooled down

Verify the presence of necessary tools and materials

Drain the existing lubricant from the crankcase

Dispose of the used lubricant properly

Enter the amount of new Quin-Cip lubricant added (in liters)

Is the lubricant pressure set between 18 to 20 PSIG?

Adjust the oil pressure relief valve if necessary

Ensure compressor is installed in a secure and upright position

Verify area is clean, dry, well lighted, and adequately ventilated

Ensure sufficient space around the compressor for inspection and maintenance

Have you read and understood the Pre-starting Checklist and Initial Starting & Operating sub-sections?

Make a general overall inspection of the unit and correct any unsafe situations

Ensure all fasteners and fittings are tight

Filter Replacement Instructions

Apply a thin film of lubricant to the gasket surface of the new filter

Spin the filter on the threaded stud until the gasket makes contact with the housing

Tighten the filter an additional 3/4 turn

Is the filter compatible with Quin-Cip or QuiCip-D lubricant?

Is the filter free from bends or damage?
